(Remove/Install Automatic Transmission - AR27.10-P-0005MRD)

Transmission 725.0 in model 213.050/053/054/153/155/253 with engine 274.9

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Risk of death  when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC)	Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines.	AS00.00-Z-0035-01A
	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	General information on vehicles with high-voltage on-board electrical system and/or lithium-ion battery and/or gaseous-fuel drive system as well as personal protective equipment		AH00.00-Z-0300-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove
1	Shift transmission (1) into neutral position and release parking brake.
2	Perform power disconnect of high-voltage onboard electrical system.		AR54.10-P-1150LHV
3	Disconnect ground line from battery.		AR54.10-P-0003LW
4	Remove engine air intake duct upstream of air filter.
5	Remove soundproofing.	Transmission 725.0 in model 213.050/053/054/153/155/253 with engine 274.9 except code 920 (Direct fuel injection with stratified charging)	AR94.30-P-5410MRD
6	Secure vehicle on vehicle lift.		AR00.60-P-0100CW
7	Remove center and rear lower engine compartment lining.		AR61.20-P-1105LWE
8	Disconnect ground line from transmission (1).
9	Disconnect equipotential bonding line from transmission (1).

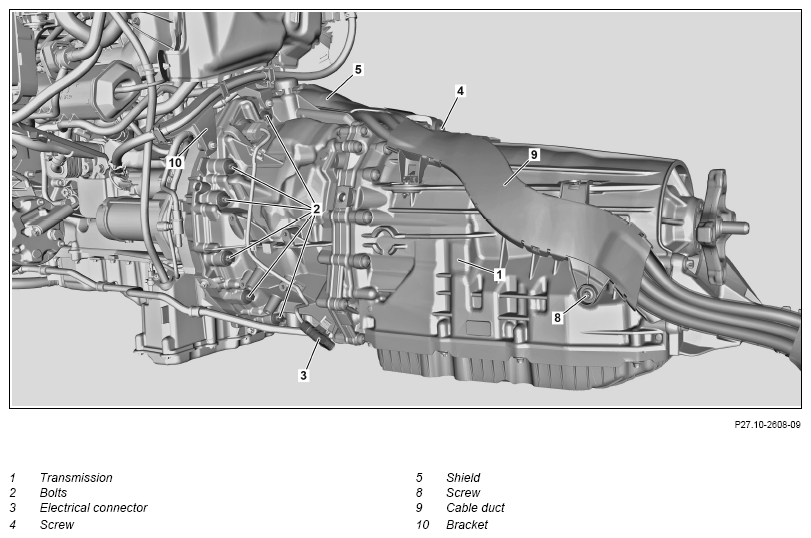

10	Release and disconnect electrical connection (3).
11	Remove exhaust system.		AR49.10-P-7142MRD
12	Remove heat shield.		AR27.40-P-0700-01LF
13	Release and disconnect electrical connector of electrohydraulic controller unit.
14	Unclip high voltage line from vehicle floor.
15	Remove oil lines (11) from transmission (1), set aside and secure against falling down.	Transmission 725.0 in model 213.054 with engine 274 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR27.55-P-0600OLE
		Transmission 725.0 in model 213.050/053/153/155/253 with engine 274.9 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR27.55-P-0600OLC
16	Support transmission (1) with major-assembly support and mounting plate and strap down securely.
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
17	Remove rear engine crossmember.	Never use impact wrenches/drivers or compressed air tools for unscrewing the bolts. If bolts are unscrewed using an impact wrench or compressed air tool their threads will be damaged.	AR22.10-P-4360OLC
18	Remove propeller shaft from output flange.		AR41.10-P-0050LW
19	Lower transmission (1) slightly.	Do not tension electrical lines. If electric lines are stretched they will be damaged.
20	Unscrew bolt (4).
21	Remove shield (5).
22	Remove holder (10) from transmission (1) and place to one side with wiring harness.
23	Remove starter from transmission (1) and secure against falling down.		AR15.30-P-7100MRD
24	Remove bolts (2).
25	Remove transmission (1) from engine and lower until the high-voltage plug (6) is accessible.	Do not tension electrical lines. If electric lines are stretched they will be damaged.
26	Remove screw (8).
27	Remove cable duct (9) from transmission (1).

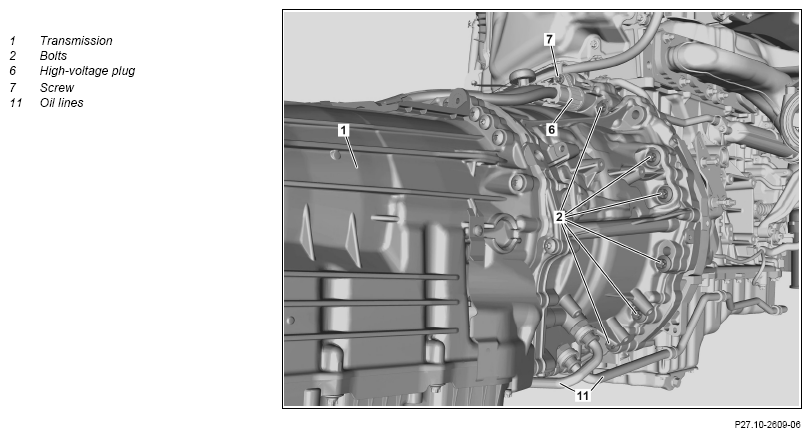

28	Remove high-voltage plug (6) from transmission (1) and cover up with protective cover.	Handle high-voltage plug (6) carefully. Otherwise the high voltage on-board electrical system may be damaged. The bolt (7) of the high-voltage plug (6) serves as an aid for pulling out and inserting, and it is permanently integrated into the high-voltage plug (6). Set of protective caps	Fig 1
29	Lower transmission (1) further and remove.
	Install
30	Clean and grease gearing of transmission input shaft.	Assembly cleaner	*BR00.45-Z-1028-04A
		Anticorrosion grease 40 g/DB supply specification 6834.00	*BR00.45-Z-1006-06A
31	Lift up transmission (1) using major assembly mount and mounting plate until the high-voltage plug (6) can be mounted.
	000 588 10 62 00 Support plate		WS26.00-P-3309B
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
32	Mount high-voltage plug (6) onto transmission (1).	Handle high-voltage plug (6) carefully. Otherwise the high voltage on-board electrical system may be damaged.
		Bolt, 3-phase high-voltage line connecting plug to transmission	*BA08.10-P-1001-01H
33	Mount cable duct (9) onto transmission (1).
34	Tighten screw (8).	Bolt, 3-phase high-voltage line cable duct to transmission	*BA08.10-P-1003-01H
35	Lift transmission (1) further up and mount onto engine.	Do not jam any electric cables in between. If electrical lines get caught in moving parts, they will be damaged.
36	Tighten screws (2).	Screw/bolt, transmission to engine	*BA27.10-P-1001-04H
37	Mount starter onto transmission (1).		AR15.30-P-7100MRD
38	Attach bracket (10) to transmission (1).	M6X1	*BA00.10-P-1002-04A
39	Install shield (5).
40	Tighten down screw/bolt (4).	Bolt, 3-phase high-voltage line protective hoop/cable duct to transmission	*BA08.10-P-1002-01H
41	Lift up transmission (1).	Do not jam any electric cables in between. If electrical lines get caught in moving parts, they will be damaged.
42	Mount propeller shaft onto output flange.		AR41.10-P-0050LW
43	Install rear engine crossmember.	Never use impact wrenches/drivers or compressed air tools for unscrewing the bolts. If bolts are unscrewed using an impact wrench or compressed air tool their threads will be damaged.	AR22.10-P-4360OLC
44	Mount oil lines (11) onto transmission (1).	Transmission 725.0 in model 213.054 with engine 274.9 with code M005 (Vehicles with 4MATIC/all-wheel drive)	AR27.55-P-0600OLE
		Transmission 725.0 in model 213.050/053/153/155/253 with engine 274.9 except code M005 (Vehicles with 4MATIC/all-wheel drive)	AR27.55-P-0600OLC
45	Clip in high voltage line at vehicle floor.
46	Connect and lock electrical connector of electrohydraulic controller unit.
47	Install heat shield.		AR27.40-P-0700-01LF
48	Install exhaust system.		AR49.10-P-7142MRD
49	Connect and lock electrical connector (3).
50	Connect equipotential bonding line to transmission (1).	Nut/bolt, equipotential bonding line to high-voltage distributor/transmission	*BA54.10-P-1004-03F
51	Connect ground line to transmission (1)	Bolt, ground line to transmission housing	*BA27.10-P-1024-04H
52	Install soundproofing.	Transmission 725.0 in model 213.050/053/054/153/155/253 with engine 274.9 except code 920 (Direct fuel injection with stratified charging)	AR94.30-P-5410MRD
53	Install engine air intake duct upstream of air filter.
54	Connect ground line to battery.		AR54.10-P-0003LW
55	Perform initial startup of high voltage on-board electrical system.		AR54.10-P-1150LHV
56	Read out and delete fault memory.
			AD00.00-P-2000-04B
57	Carry out transmission adaptation.	After replacing the transmission (1), the electrical machine rotor position sensor or the electrical machine.
			AD00.00-P-2000-04B
58	Correct oil level in transmission (1).	Transmission 725.007 in model 213.050 with engine 274.9 Transmission 725.017 in model 213.053/153/155/253 with engine 274.9 Transmission 725.047 in model 213.054 with engine 274.9	AR27.00-P-0270EWH
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
59	Perform engine test run and check transmission (1) for proper operation and leak tightness.
60	Install center and rear lower engine compartment lining.		AR61.20-P-1105LWE
61	Disconnect vehicle from vehicle lift.		AR00.60-P-0100CW

Fig 1: Identifying Set Of Protective Caps (001 589 02 91 00)

Courtesy of MERCEDES-BENZ USA
