(Remove/Install Exhaust Gas Recirculation Line - AR14.20-P-0001MND)
Engine 276.853 in model 213
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Notes on self-locking nuts and bolts | AH00.00-N-0001-01A | ||
| Note on calculation of tightening torque when using insertion or socket tools with various effective lengths | AH00.00-P-0015-01CW | ||

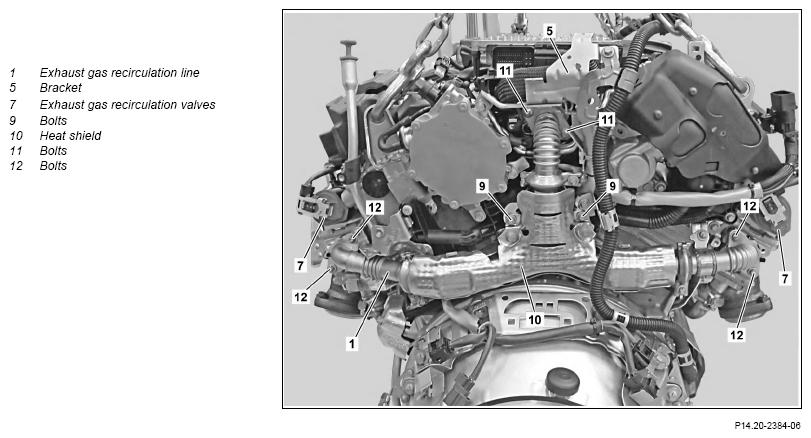

| Remove/install | |||
| 1 | Remove left-hand air filter housing | AR09.10-P-1151MND | |
| 2 | Remove right air filter housing | AR09.10-P-1152MND | |
| 3 | Remove vacuum pump | AR43.05-P-1320MND | |
| 4 | Remove engine management control unit | AR07.08-P-7013MND | |
| 5 | Remove screw/bolt from bracket (5) at crash plate for fuel pump | AR07.02-P-1028MND | |
| *BA00.10-P-1002-01A | |||
| 6 | Remove screw/bolt of bracket (5) from vacuum pump | AR43.05-P-1320MND | |
| *BA00.10-P-1002-01A | |||
| 7 | Place bracket (5) to one side | ||
| 8 | Remove screw/bolts for heat shield (10) for EGR line (1) | *BA14.20-P-1012-01M | |
| 9 | Unclip heat shield (10) and remove upwards | ||
| 10 | Remove screw/bolts (12) on exhaust gas recirculation valve (7) and remove EGR line (1) from exhaust gas recirculation cooler (7) | For left exhaust gas recirculation valve (7). | |
| AR14.20-P-0002MND | |||
| 11 | Remove screw/bolts (12) on exhaust gas recirculation valve (7) and remove EGR line (1) from exhaust gas recirculation valve (7) | For right exhaust gas recirculation valve (7). | |
| AR14.20-P-0003MND | |||
| 12 | Remove screw/bolts (11) and take off EGR line (1) on charge air distributor | ||
| *BA14.20-P-1014-01M | |||
| 13 | Unscrew screw/bolts (9) | *BA14.20-P-1009-01M | |
| 14 | Remove EGR line (1) upwards | ||
| 15 | Install in the reverse order |
HEADLESS SCREWS: BOLTS AND NUTS, COARSE-PITCH THREAD
| Number | Designation | Model all (4xWD, CAR, smart) | |||
|---|---|---|---|---|---|
| BA00.10-P-1002-01A | M6 | 8.8 | Galvanized | Nm | 9 |
| Phosphated | Nm | 9 | |||
| 10.9 | Galvanized | Nm | 13 | ||
| Phosphated | Nm | 12 | |||
| 12.9 | Galvanized | Nm | 16 | ||
| Phosphated | Nm | 14 | |||
EXHAUST GAS RECIRCULATION
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA14.20-P-1009-01M | Screw/bolt, exhaust gas recirculation line (center) to bracket | Nm | 9 |
EXHAUST GAS RECIRCULATION
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA14.20-P-1012-01M | Screw/bolt, heat shield to exhaust gas recirculation line (center) bracket | Nm | 9 |
EXHAUST GAS RECIRCULATION
| Number | Designation | Engine 276.8 | |
|---|---|---|---|
| BA14.20-P-1014-01M | Screw/bolt/clamp, exhaust gas recirculation line to charge air distributor/exhaust gas recirculation line (center) | Nm | 9 |
