Remove/Install Retaining Lock For Crankshaft/Ring Gear - AR03.30-P-5000MND

Engine 276.8 in model 213, 238

Shown on model 213 with engine 276.8 and code M005 (4MATIC)

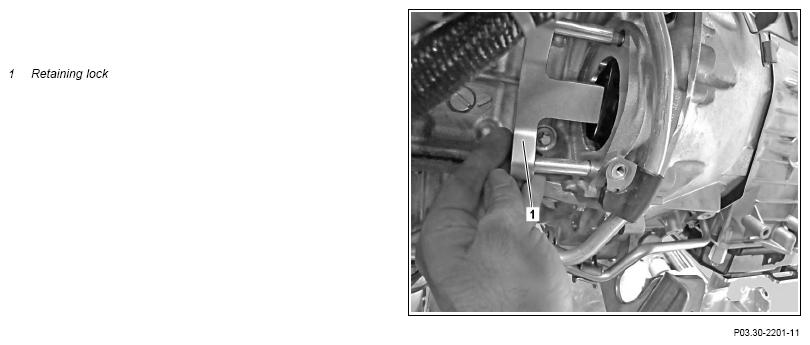

Fig 1: Retaining Lock For Crankshaft/Ring Gear Components Location - Engine 276.8 In Model 213

Courtesy of MERCEDES-BENZ USA

	Risk of death  caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury.  Moving parts can pinch, crush or, in extreme cases even sever extremities.	No parts of the body or limbs should be within the operating area of mechanical components when moving components.	AS00.00-Z-0009-01A
	Risk of injury.  Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of injury  caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
	Install
1	Remove center and rear engine compartment paneling		AR61.20-P-1105LWE
2.1	Remove starter	Engine 276.8 in model 213, 238 with code M005 (4MATIC)	AR15.30-P-7100MNG
2.2	Remove cap on left engine side	Engine 276.8 in model 238 except code M005 (4MATIC)
3	Check toothing of ring gear of drive plate for wear and damage by rotating engine at center bolt on crankshaft in direction of engine rotation	Socket wrench bit	Fig 3
		For damage ↓ Replace drive plate.
			AR03.30-P-8003MND
4	Insert retaining lock (1) into access opening	If required, rotate engine further at center bolt for crankshaft in direction of engine rotation until the retaining lock (1) snaps into place.
		Socket wrench bit	Fig 3
		Retaining lock	Fig 2
	Remove
5	Remove retaining lock (1) from access opening	Retaining lock	Fig 2
6.1	Install starter	Engine 276.8 in model 213, 238 with code M005 (4MATIC)
			AR15.30-P-7100MNG
6.2	Install cap on left engine side	Engine 276.8 in model 238 except code M005 (4MATIC)
		Screw/bolt, transmission to engine	*BA27.10-P-1001-04H
	Risk of burn injuries  , suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning  caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Risk of accident  from vehicle starting off by itself when engine running. Risk of injury  (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
7	Carry out an engine test run, checking the engine for proper operation and leaktightness
8	Install center and rear engine compartment paneling		AR61.20-P-1105LWE

Fig 2: Identifying Retaining Lock (112 589 03 40 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Identifying Socket Wrench Bit (001 589 65 09 00)

Courtesy of MERCEDES-BENZ USA
