Remove/Install Front Seat Backrest Padding - AR91.10-P-0003MFD
Model 118, 177, 247
with code 555 (AMG-Performance Seat)
except code 7U1 (Manually adjustable front seats)
except code 7U2 (Luxury front seats)
except code 7U4 (Seat model variant 4)
Shown on right front seat
Shown on right font seat
Shown on right front seat
| Risk of injury during testing and repair operations related to pyrotechnical components | Do not expose pyrotechnical component parts to temperatures above 100°C or 212°F. Disconnect current supply when working on such component parts. | AS91.00-Z-0008-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notice | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Information, assessment and legal requirements when working with, handling and storing pyrotechnical components | AH91.00-Z-0000-10A | ||
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/install | |||
| 1 | Remove front seat. | AR91.10-P-1000MFA | |
| 2 | Remove side covers. | AR91.10-P-1201MFD | |

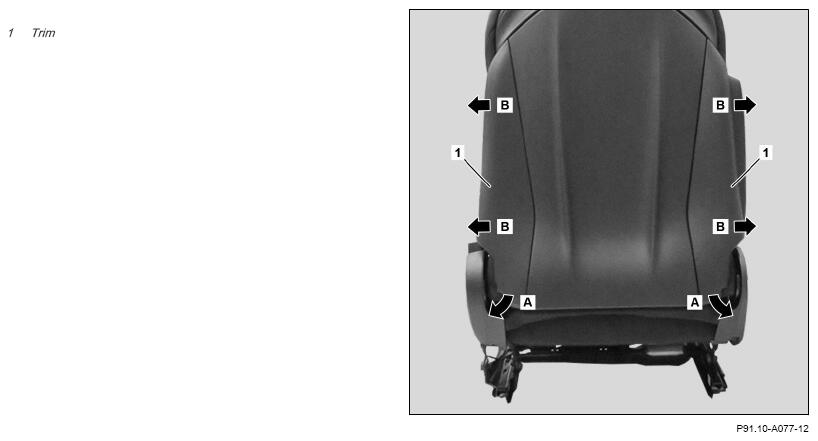

| 3 | Unclip trims (1) on lower side toward rear (A), unclip on sides along side (B) and remove. | ||

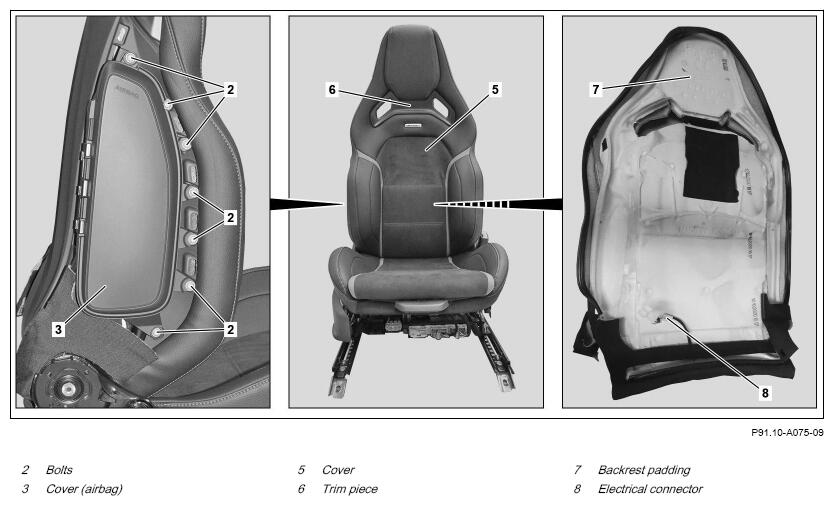

| 4 | Unscrew screws (2) and remove cover (3). | *BA91.60-P-1012-01Q | |

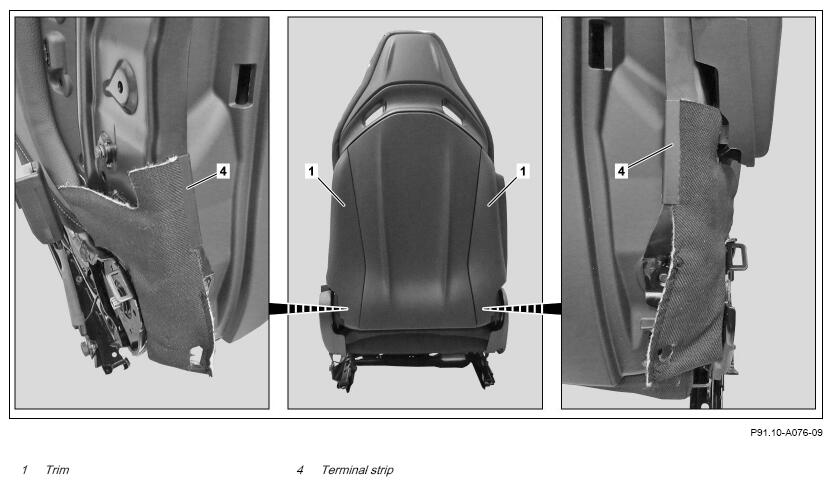

| 5 | Unhook terminal strips (4). | ||
| 6 | Remove cover (5) at bottom of seat backrest and turn inside out. | Fig 1 | |
| 7 | Release outer cover (5) all-around at seat backrest and turn inside out. | Fig 1 | |
| 8 | Unhook outer cover (5) from trim element (6). | Fig 1 | |
| 9 | Release seat backrest padding (7) all-round from seat backrest until electrical connector (8) is accessible. | ||
| 10 | Release and disconnect electrical connector (8). | ||
| 11 | Remove seat backrest padding (7) with outer cover (5). | ||
| 12 | Remove outer cover (5) from seat backrest padding (7). | If seat backrest padding (7) is replaced. | AR91.10-P-8656MFD |
| 13 | Install in the reverse order. | ||
| Concluding tasks | |||
| 14 | Connect diagnostic system, read out fault memory and clear if necessary. | ||
| AD00.00-P-2000-06MFA |
AIRBAG
| Number | Designation | Model 118 | Model 177 | |
|---|---|---|---|---|
| BA91.60-P-1012-01Q | Bolt, cover for side airbag to backrest frame | Nm | 4 | 4 |
AIRBAG
| Number | Designation | Model 247 | |
|---|---|---|---|
| BA91.60-P-1012-01Q | Bolt, cover for side airbag to backrest frame | Nm | 4 |
