Remove/Install Automatic Transmission Fluid Cooler - Ar27.55-D-1000TSC

Model 907 with engine 274 with transmission 725.0

	Risk of burns and scalding when handling hot fluids and components they come into contact with. Risk of injury to skin and eyes when handling hot fluids.	Wear protective gloves, protective clothing and safety glasses, if necessary. Pour hot fluids in suitable containers only.	AS00.00-Z-0033-01A
	Risk of injury caused by scraping or cutting body parts on sharp vehicle parts	Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels.	AS00.00-Z-0017-01A
	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Notes on automatic transmission		AH27.19-P-0001-01NKB
	Remove/install
1	Remove radiator grille.		AR88.40-D-4001TS

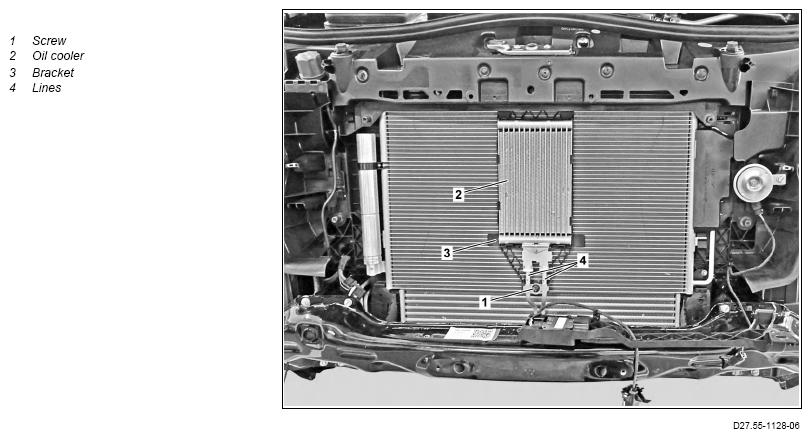

2	Unscrew screw (1) and remove double clamp.
3	Unclip oil cooler (2) from holder (3).
4	Detach lines (4), remove oil cooler (2) and		AR27.10-D-0501-03TSF
	seal exposed connections using suitable stop plugs.	Collect escaping transmission oil. Commercially available devices/tools Collecting pan
		Assembly cleaner	*BR00.45-Z-1028-04A
		Record plug	Fig 6
5	Install in the reverse order.
	Check
6	Check oil level in automatic transmission using ultrasound device and correct. Automatic transmission fluids (ATF) (specification 236.17)	MB Plastilube brake paste (brownish) Socket wrench Adapter Socket wrench Oil level sensor	AR27.00-D-0270-02TSC
			BB00.40-P-0236-17A
			*BR00.45-Z-1084-06A
			Fig 1
			Fig 2
			Fig 5
			Fig 3
		Oil dispenser	Fig 4
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
7	Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. Perform engine test run, when doing so, check oil cooler (2) and oil lines for leak tightness.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
