Check Oil Level In Automatic Transmission Without Ultrasound Device, Correct If Necessary - Ar27.00-D-0270-03TSC

Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
Connect/disconnect diagnostic unit		AD00.00-D-2000-06TS
Connect/disconnect diagnostic unit		AD00.00-D-2000-06TS

Transmission 725.0 in model 907

Fig 1: Socket Wrench (724 589 01 09 00)

Fig 2: Socket Wrench (725 589 00 09 00)

Connect vehicle diagnosis system and determine transmission oil temperature.
Select Oil level measurement without ultrasound unit menu item in XENTRY.

Throughout the entire test, the parking brake must not be released and no other disturbance variables may be generated, that are not required for the work procedure. All of these factors lead to the measurement being aborted and a restart being required.
Allow transmission oil to cool to less than limit value.
If the limit value is exceeded.

Limit value is 45 °C.

The routine is resumed after the limit value has been undershot.
Unscrew quick-release fastener using socket wrench.

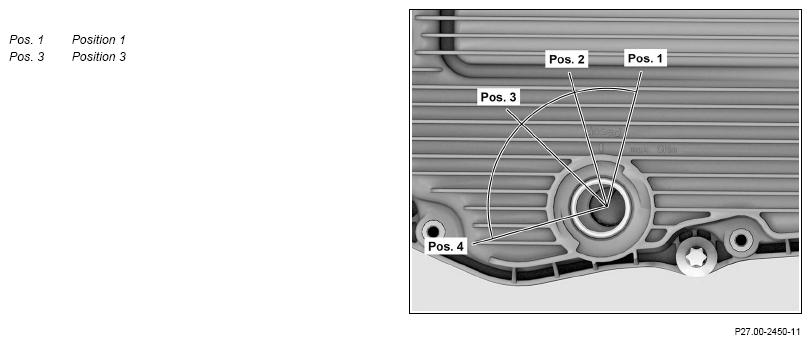

Attach socket wrench to oil pan and turn to position 1 (Pos. 1).
Start engine and heat up transmission oil to 49 °C.
Set socket wrench to position 3 (Pos. 3).

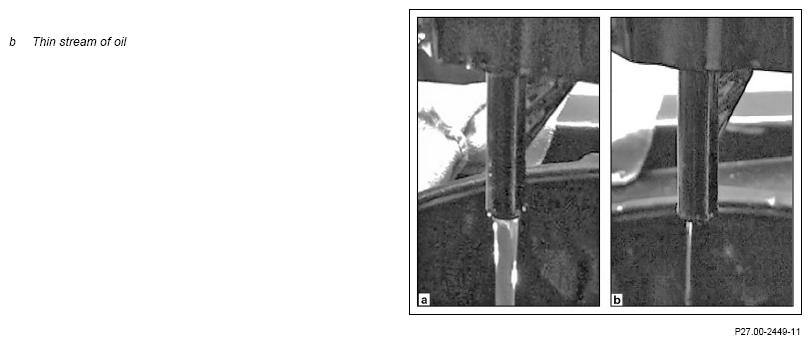

Drain off transmission oil until the stream of oil has reduced to a thin stream (b) and the transmission oil temperature is 50 °C.
Set socket wrench to position 1 (Pos. 1) and detach.
Set socket wrench to position 1 (Pos. 1) only.

Otherwise an undefined quantity of transmission oil will leak out when the quick-release fastener is reopened.
Screw in quick-release fastener.
Replace quick-release fastener.
Switch off engine.
Disconnect vehicle diagnosis system from vehicle.
