Risk of injury
to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning
from swallowing coolant. |
Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A |
 |
Remove |
|
|
| 1 |
Drain off coolant. |
|
AR20.00-D-1142TSR |
| 2 |
Remove exhaust gas recirculation cooler. |
|
AR14.20-D-7665TSR |
| 3 |
Remove cable duct of the engine wiring harness. |
|
AR15.18-D-0004-01TSR |
| 4 |
Remove fuel filter and swivel out of working area. |
Do not remove fuel hoses. |
AR47.20-D-5510TSR |
| 5 |

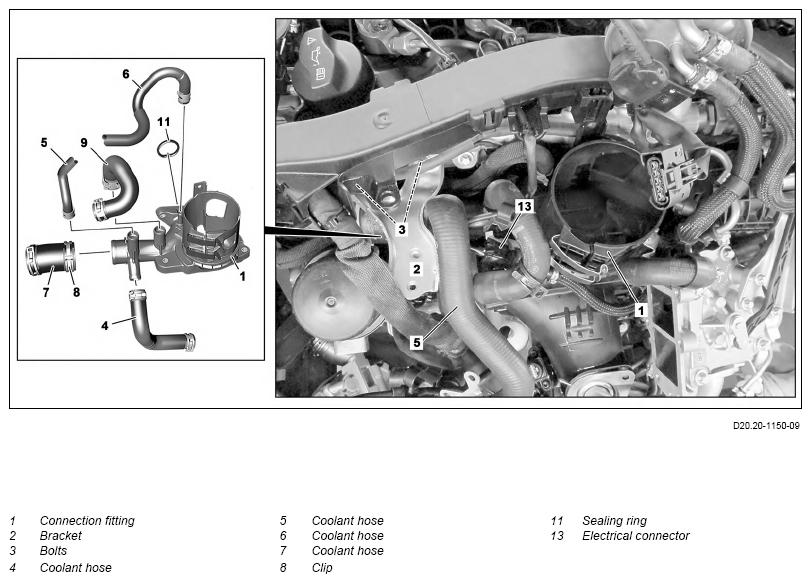

Disconnect electrical connection (13). |
|
|
| 6 |
Remove holder (2). |
To do this, remove screws/bolts (3). |
|
| 7 |
Remove coolant hoses (4, 5, 6) from connection fitting (1). |
Hose clamp pliers |
Fig 1 |
| 8 |
Open clamp (8) on connection fitting (1) and push back onto coolant hose (7). |
Hose clamp pliers |
Fig 1 |
| 9 |

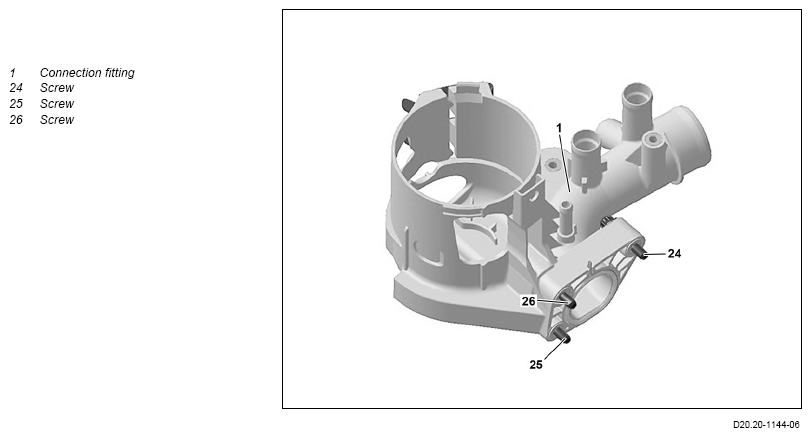

Remove screws (24, 25, 26). |
Set of flexible head wrenches |
Fig 2 |
| 10 |
Remove connection fitting (1). |
To do this, lift connection fitting (1) and pull out coolant hose (7). |
l |
 |
Check |
|
|
| 11 |
Check clamp (8) and coolant hose (7) for damage. |
In the case of damage,
↓
Replace clamp (8) or coolant hose (7). |
|
 |
Install |
|
|
| 12 |
Install connection fitting (1). |
Do not use lubricant or liquid seal. Leaks and damage may occur otherwise.
Install new sealing ring (11) on connection fitting (1). |
|
| 13 |
Screw in screws (24, 25, 26). |
Screw in screw/bolts (24, 25, 26) and their tighten in the numerical sequence.
Bolt, connection fitting for coolant hoses to cylinder head |
*BA20.10-N-1003-01TSR |
|
Set of flexible head wrenches |
Fig 2 |
| 14 |
Fasten clamp (8). |
Observe marking on coolant hose (7).
Hose clamp pliers |
Fig 1 |
| 15 |
Attach coolant hoses (4, 5, 6) to the connection fittings (1). |
Hose clamp pliers |
Fig 1 |
| 16 |
Install holder (2). |
Screw in bolts (3) to do this.
Screw/bolt, bracket to cylinder head |
*BA14.20-N-1009-01TS |
| 17 |
Connect electrical connector (13). |
|
|
| 18 |
Install fuel filter. |
|
AR47.20-D-5510TSR |
| 19 |
Attach cable duct of the engine wiring harness. |
|
AR15.18-D-0004-01TSR |
|
M6 |
*BA00.10-N-1002-01A |
| 20 |
Install exhaust gas recirculation cooler. |
|
AR14.20-D-7665TSR |
| 21 |
Fill in coolant. |
|
AR20.00-D-1142TSR |
|
Check |
|
|
|
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
| 22 |
Check for leaktightness when engine is running. |
Visual inspection only. |
|
