Remove/Install Exhaust Gas RECIRCULATION Cooler - Ar14.20-D-7665TSR
Engine 651 in model 907
MODIFICATION NOTES
| 30.04.2021 | Work procedure revised | The whole document |
Shown with code KL5 (Fuel filter with water separator)
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90 °C. Open cap slowly and release the overpressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. |
AS20.00-Z-0001-01A | |
| Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust. | Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. |
AS49.00-Z-0001-01A | |
| Risk of injury . Skin or eye injuries may result when handling hot or glowing objects. | Wear protective gloves, protective clothing and safety glasses, if necessary. | AS00.00-Z-0002-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on coolant | AH20.00-N-2080-01A | ||
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||
| 1 | Remove engine cover. | AR01.10-D-2405TSR | |
| 2 | Remove vacuum reservoir. | AR07.09-D-0001TSR | |
| 3 | Reduce pressure in engine cooling system. | ||

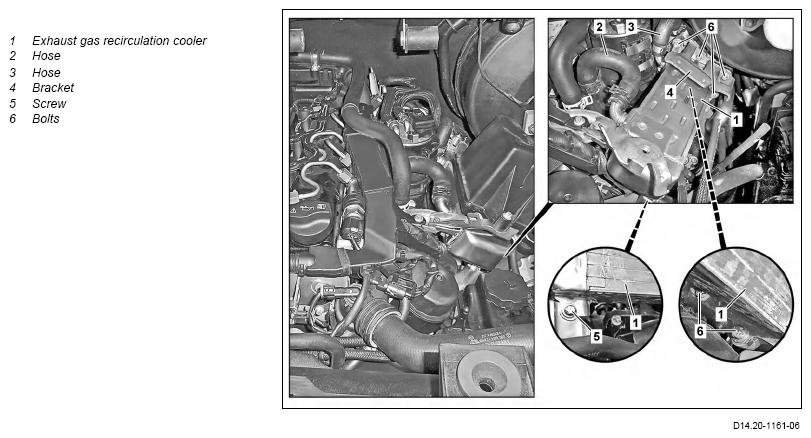

| 4 | Disconnect hoses (2, 3). | Fig 2 | |
| 5 | Remove hose (2) from exhaust gas recirculation cooler (1). | ||
If clamp is damaged, ↓ Replace clamp. |
Fig 1 | ||
| 6 | Remove hose (3) from exhaust gas recirculation cooler (1). | ||
If clamp is damaged, ↓ Replace clamp. |
Fig 1 | ||
| 7 | Remove oil dipstick tube. | AR18.40-D-3520TSR | |

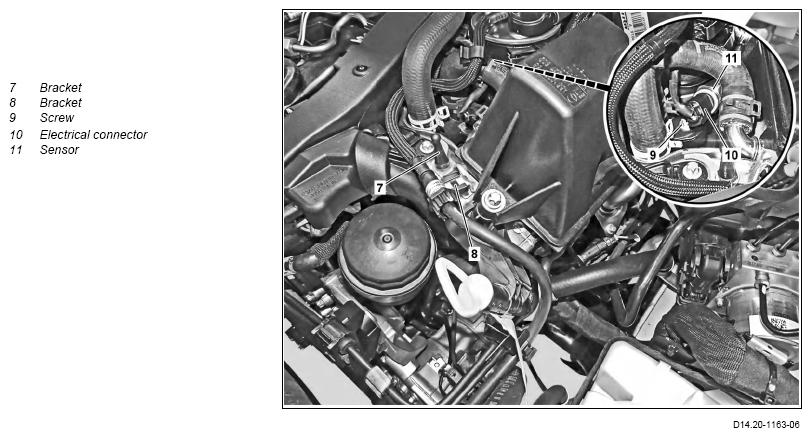

| 8 | Remove bracket (7) for engine cover. | *BA00.10-N-1002-01A | |
| 9 | Unclip bracket (8) and position with hose outside the working area. | Engine 651 in model 907 with code KL5 (Fuel filter with water separator) |
|
| Fuel filter installation position changed | BT47.20-S-0004-01A | ||
| 10 | Disconnect electrical connector (10). | ||
| 11 | Remove screw (9). | *BA00.10-N-1002-01A | |
| 12 | Position sensor (11) outside the working area. | ||
| 13 | Remove screw (5). | *BA14.20-N-1005-01TS | |
| 14 | Remove exhaust gas recirculation cooler (1) with holder (4). | AR14.20-D-7665-01TSR | |
| Clip: Exhaust gas recirculation cooler tightening procedure | GB14.20-D-0000-00A | ||
| *BA14.20-N-1001-01TS | |||
| Fig 3 | |||
| 15 | Install in the reverse order. | ||
| Check | |||
| 16 | Check engine cooling system for leak tightness. | AR20.00-D-1011TS | |
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 17 | Check leak tightness of exhaust gas recirculation cooler (1) when the engine is running. |
| Number | Designation | 8.8 | 10.9 | ||
|---|---|---|---|---|---|
| BA00.10-N-1002-01A | M6 | Galvanized | Nm | 9 | 13 |
| Phosphated | Nm | 9 | 12 | ||
| Number | Designation | 12.9 | ||
|---|---|---|---|---|
| BA00.10-N-1002-01A | M6 | Galvanized | Nm | 16 |
| Phosphated | Nm | 14 | ||
| Number | Designation | Engine 651 in model 907 | |
|---|---|---|---|
| BA14.20-N-1001-01TS | Bolt, holder/exhaust gas recirculation cooler to bypass flap | Nm | 10 |
| Number | Designation | Engine 651 in model 907 | |
|---|---|---|---|
| BA14.20-N-1005-01TS | Bolt, holder to exhaust gas recirculation cooler | Nm | 9 |
