Remove/Install Exhaust Gas RECIRCULATION Line Upstream Of Exhaust Gas RECIRCULATION Cooler - Ar14.20-D-1061TSV

Engine 642 in model 907

MODIFICATION NOTES

30.07.2019

Bolt, exhaust gas recirculation line to exhaust collector pipe

BA14.20-N-1006-01TSV

	Risk of death caused by vehicle slipping or toppling off of the lifting platform.	Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer.	AS00.00-Z-0010-01A
	Risk of injury . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Risk of burn injuries, suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning caused by skin contact with solid components of the exhaust.	Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area.	AS49.00-Z-0001-01A
	Notes on avoiding damage through contamination and foreign objects		AH00.00-P-5000-01A
	Remove/install
1	Remove exhaust gas recirculation.		AR14.20-D-1050TSV
2	Remove exhaust pipe downstream of the exhaust gas turbocharger.		AR49.10-D-5532TSV
3	Raise vehicle.

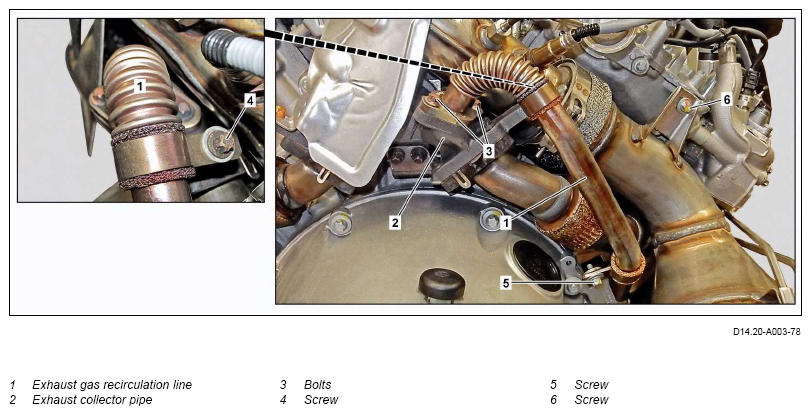

4	Remove exhaust gas recirculation line (1) from exhaust manifold (2).	For this purpose, remove bolts (3, 4). Replace seal.
		Bolt, exhaust gas recirculation line to exhaust collector pipe	*BA14.20-N-1006-01TSV
		Set of flexible head wrenches	Fig 1
5	Remove clamp of the exhaust gas recirculation line (1) from the bracket.	Remove screw (5) to do this.
		Bolt, EGR line to bracket	*BA14.20-N-1007-01TSV
		Set of flexible head wrenches	Fig 1
6	Lower vehicle.
7	Remove screw (6).	Bolt, diesel particulate filter to cylinder head holder	*BA49.20-N-1006-02TSR
7	Remove screw (6).	Set of flexible head wrenches	Fig 1
8	Remove exhaust gas recirculation line (1).	To do so, rotate the exhaust gas recirculation line (1) and remove upward. If necessary, ↓ press the diesel particulate filter slightly to the side.
	Clean
9	Clean the sealing surfaces on exhaust manifold (2).	Assembly cleaner	*BR00.45-Z-1028-04A
10	Clean the sealing surfaces of the EGR (1).	If the exhaust gas recirculation line (1) is being re-used. Assembly cleaner	*BR00.45-Z-1028-04A
11	Install in the reverse order.
	Check
	Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running.	Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts.	AS00.00-Z-0005-01A
12	Check for leaktightness when engine is running.	Visual inspection only.

EXHAUST GAS RECIRCULATION

Number	Designation			Engine 642 in model 907
BA14.20-N-1006-01TSV	Bolt, exhaust gas recirculation line to exhaust collector pipe	Stage 1	Nm	10
BA14.20-N-1006-01TSV		Stage 2	∠°	90

EXHAUST GAS RECIRCULATION

Number	Designation		Engine 642 in model 907
BA14.20-N-1007-01TSV	Bolt, EGR line to bracket	Nm	9

DIESEL PARTICULATE FILTER

Number	Designation		Model 907 with engine 642
BA49.20-N-1006-02TSR	Bolt, diesel particulate filter to cylinder head holder	Nm	23

Fig 1: Set Of Flexible Head Wrenches (001 589 81 09 00)

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
