Risk of injury.
Skin or eye injuries may result when handling hot or glowing objects. |
Wear protective gloves, protective clothing and safety glasses, if necessary. |
AS00.00-Z-0002-01A |
|
Risk of burn injuries,
suffocation and poisoning when working on the exhaust system and the components connected to it. Risk of suffocation and risk of poisoning caused by inhalation of gaseous and solid components of the exhaust. Risk of poisoning
caused by skin contact with solid components of the exhaust. |
Wear protective clothing and safety glasses. Use the extraction system. Move people out of the hazard area. |
AS49.00-Z-0001-01A |
| |
Notes on avoiding damage through contamination and foreign objects |
|
AH00.00-P-5000-01A |
  |
Remove/install |
|
|
| 1 |

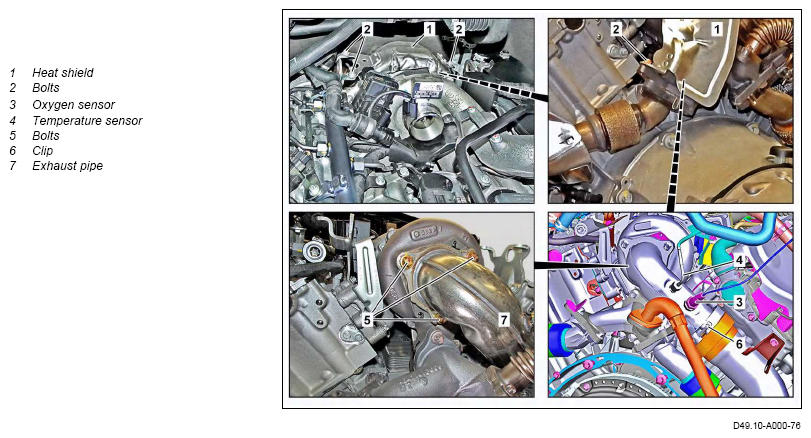

Remove trim of right cylinder head cover. |
|
AR01.20-D-5017TSV |
| 2 |
Remove heat shield (1). |
 To do this, remove screws (2).
 Bolt, heat shield to bracket |
*BA09.40-N-1009-02TSV |
| |
|
Bolt, heat shield to exhaust collector pipe |
*BA09.40-N-1010-02TSV |
| 3 |
Remove lambda sensor (3). |
|
AR07.04-D-0086TSV |
| 4 |
Remove temperature sensor (4) from the exhaust pipe (7). |
Do not disconnect electrical connector. |
AR07.04-D-0014TSV |
| 5 |
Remove bolts (5). |
Bolt, exhaust pipe to turbocharger |
*BA09.40-N-1008-02TSV |
| 6 |
Open clamp (6). |
Clamp, diesel particulate filter to exhaust pipe |
*BA49.20-N-1007-02TSR |
| 7 |
Remove exhaust pipe (7). |
: Replace seals. |
|
| 8 |
Install in the reverse order. |
|
|
 |
Check |
|
|
|
Risk of accident
from vehicle starting off by itself when engine running. Risk of injury
(bruises and burns) resulting from working on the engine while it is being started or when it is running. |
Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. |
AS00.00-Z-0005-01A |
| 9 |
Check for leaktightness when engine is running. |
Visual inspection only. |
|
