Remove/Install Washer Fluid Reservoir Of Windshield Washer System - Ar82.35-D-6000TSR
Model 907

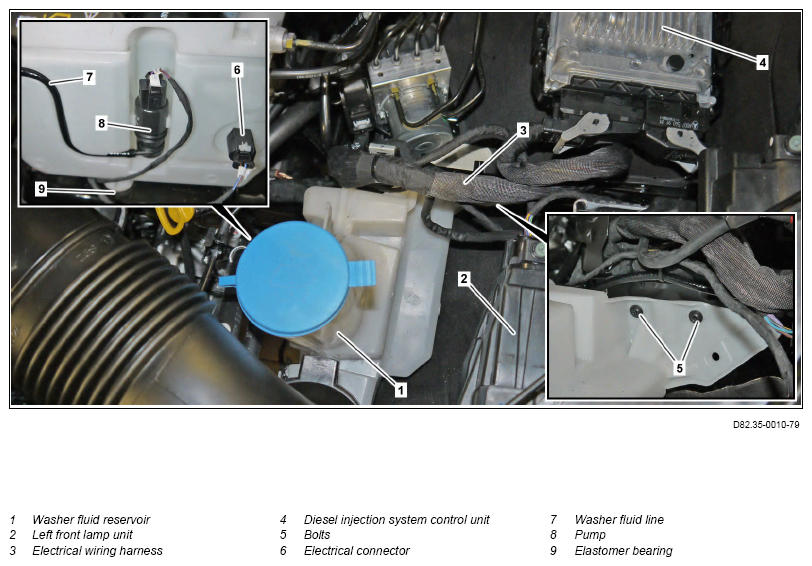

Shown on model 907.7 with engine 651 except code W78 (Window in liftgate or rear-end door with wiper and washer system)
| Risk of fire and explosion caused by ignition of window washing fluid or antifreeze and their vapors. Risk of poisoning caused by swallowing window washing fluid or antifreeze or inhaling their vapors. Risk of injury or physical irritations caused by contact of window washing fluid or antifreeze with eyes, mucous membranes or skin. | Wear protective clothing and tight-fitting safety glasses. No open flames, fire or ignition sources. Avoid contact with eyes, mucous membranes and skin. When working with window washing fluids or antifreeze, do not eat, drink, or smoke. Do not inhale vapors and ensure sufficient ventilation in the working area. Store window washing fluid and antifreeze leakfree in safely closed original containers and out of the reach of children. | AS82.35-Z-0001-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove left front lamp unit (2). | AR82.10-D-4733TS | |
| 2 | Release electrical wiring harness (3) of the diesel injection system control unit (4) and place to one side. | ||
| 3 | Remove bolts (5). | ||
| 4 | Disconnect electrical connector (6) of fill level sensor. | ||
| 5 | Unclip washer fluid line (7) of windshield washer system at front from the guide in the washer fluid reservoir (1). | ||
| 6 | Unclip washer fluid line of windshield washer system at rear from the guide in the washer fluid reservoir (1). | Model 907 with code W78 (Window in tailgate or hinged rear door with wipe/wash system) |
|
| 7 | Remove pump (8) from washer fluid reservoir (1). | ||
| 8 | Guide washer fluid reservoir (1) upwards out of elastomer bearing (9). | ||
| 9 | Check elastomer bearing (9) and seal of pump (8). | If there is a problem, ↓ Replace elastomer bearing (9) or seal of pump (8). |
|
| 10 | Install in the reverse order. | ||
| 11 | Correct fluid level of windshield washer system. | ||
| AP82.35-D-8210TS | |||
| Check | |||
| 12 | Perform function test of the windshield washer system. | ||
| AP82.30-D-8252TS |
