Remove/Install Head Unit - Ar82.85-D-1101TS
Model 907
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Perform commissioning of head unit (1) with vehicle diagnosis system | When replacing head unit (1). | |
| AD00.00-D-2000-06TS | |||
| 2 | Remove display trim at instrument panel | AR68.10-D-0601TS | |

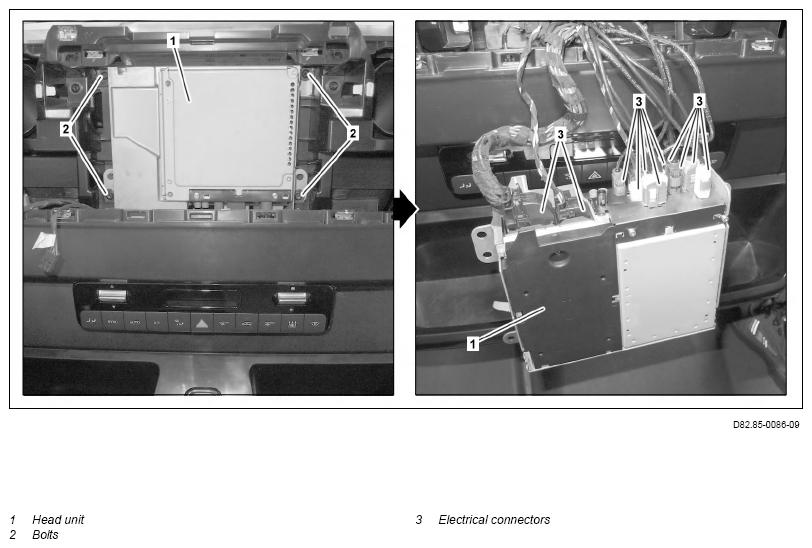

| 3 | Remove screws (2) | ||
| 4 | Remove head unit (1) until electrical connectors (3) are accessible... | ||
| 5 | Disconnect electrical connectors (3) and remove head unit (1) | ||
| 6 | Install in the reverse order | ||
| Check | |||
| 7 | Check the correct function of the head unit (1) |
