Remove/Install Battery Carrier Of Auxiliary Battery In Vehicle Interior - Ar54.10-D-0031TS

Model 907

with code E2I (Auxiliary battery for retrofitted consumers, interior)

	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1	Remove auxiliary battery in vehicle interior.		AR54.10-D-0007TS

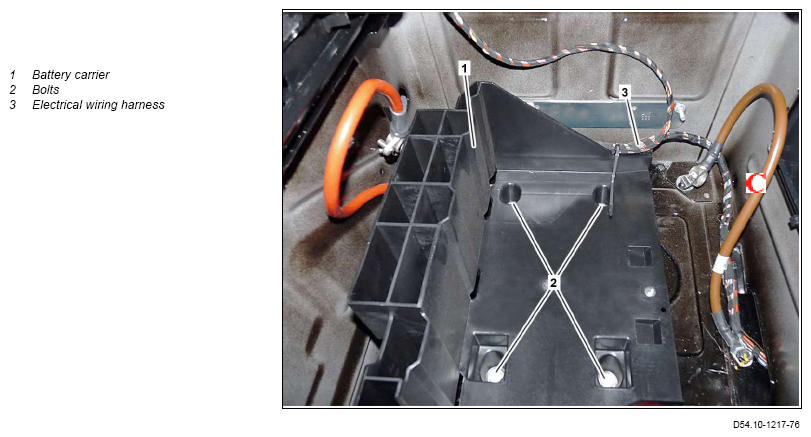

2	Unscrew bolts (2).
3	Loosen electrical wiring harness (3) from battery carrier (1) and remove from working area.

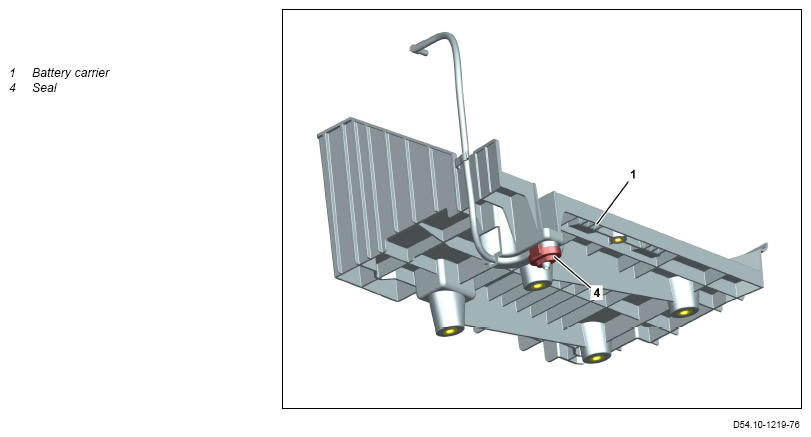

4	Remove battery carrier (1) from seat base.	The vent hose remains on the battery carrier (1). : Check for correct seating of seal (4) between battery carrier (1) and vehicle floor.
5	Install in the reverse order.
