Remove/Install Additional Battery - Ar54.10-D-0007TS

Model 907

with code E2I (Auxiliary battery for retrofitted consumers, interior)

Shown on model 907 with code SB2 (Comfort front passenger seat)

	Risk of fire  /risk of explosion due to short circuit and escaping oxyhydrogen gas. Risk of (burn) injury caused by caustic burns to eyes, skin and mucous membranes from battery electrolyte/mist, short circuit and arcing. Risk of poisoning  caused by swallowing battery electrolyte or absorption of lead through the skin or body orifices. Risk of death  due to voltage U >= 30 V AC and U >= 60 V DC.	No fires, sparks, open flames, or smoking. Wear acid-resistant gloves, clothing, and glasses. Pour battery acid only into suitable and appropriately marked containers.	AS54.10-Z-0001-01A
	Notes on battery		AH54.10-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove/install
1.1	Remove front passenger seat.	Model 907 with code S04 (Front passenger seat (standard seat)), model 907 with code SL1 (Front passenger seat)	AR91.10-D-1000TS
1.2	Move front passenger seat to uppermost and foremost position.	Model 907 with code SB2 (Comfort front passenger seat), model 907 with code SF2 (Electrically adjustable front passenger seat)
1.3	Fold up front passenger bench seat.	Model 907 with code S23 (Two-seater front passenger seat)	AR91.10-D-1035TS
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3	Release seat base cover (9) and remove from working area.

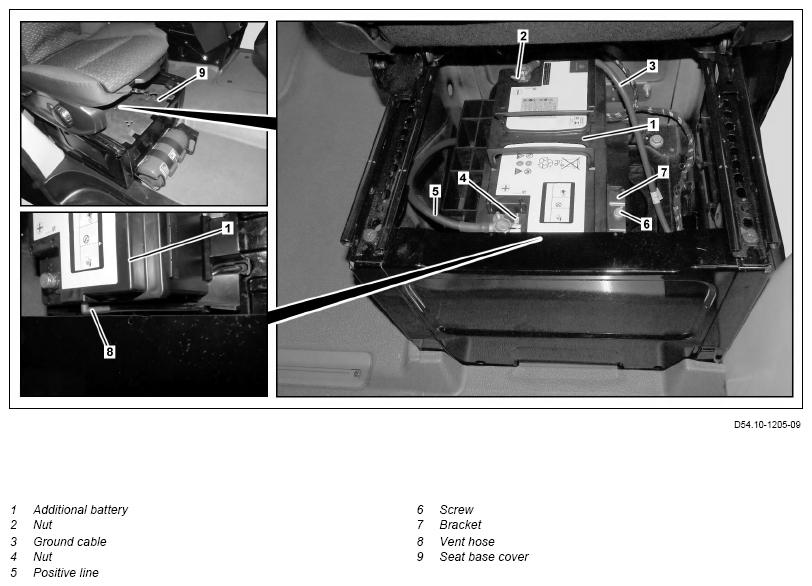

4	Loosen nut (2).	Nut, battery clamp to negative pole/positive pole of on-board electrical system battery/auxiliary battery	*BA54.10-N-1001-01TS
5	Disconnect ground line (3) from auxiliary battery (1) and remove from working area.
6	Fold up positive pole cover.
7	Release nut (4).	Nut, battery clamp to negative pole/positive pole of on-board electrical system battery/auxiliary battery	*BA54.10-N-1001-01TS
8	Disconnect positive line (5) from auxiliary battery (1) and remove from working area.
9	Remove bolt (6) and remove holder (7).
10	Detach vent hose (8) from auxiliary battery (1).	: Check vent hose (8) is correctly seated on auxiliary battery (1). Otherwise escaping battery acid mist can cause damage to the vehicle.
11	Remove auxiliary battery (1) from seat base.
12	Install in the reverse order.
