Remove/Install Side Cover Of Stowage Tray On Instrument Panel - Ar68.10-D-0004TS
Model 907
| Notes on carrying out repair work in the vehicle interior | AH68.00-N-0001-01S | ||
| Remove/install | |||
| 1 | Remove left and right speaker covers | AR68.10-D-0002TS | |
| 2 | Remove left and/or right screw (2) | ||

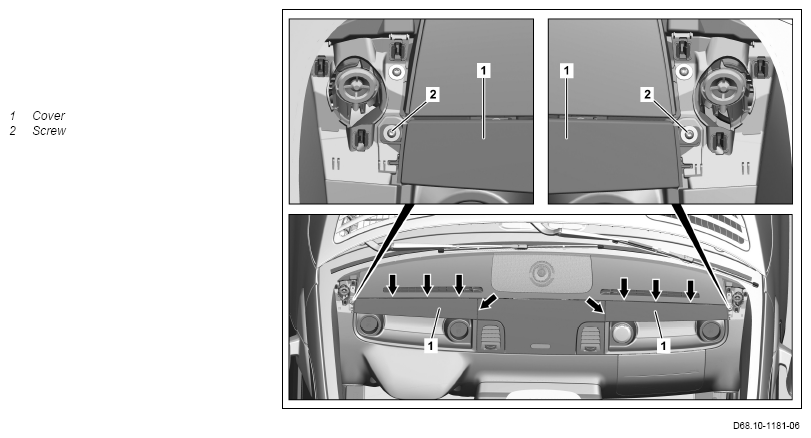

| 3 | Unclip left and/or right cover (1) from instrument panel (arrows) and remove | Fig 1 | |
| 4 | Install in the reverse order |
