Remove/Install Rear Axle Shaft - Ar35.30-D-0620TSR

Model 907 with rear axle 741.422/453/454/455/456

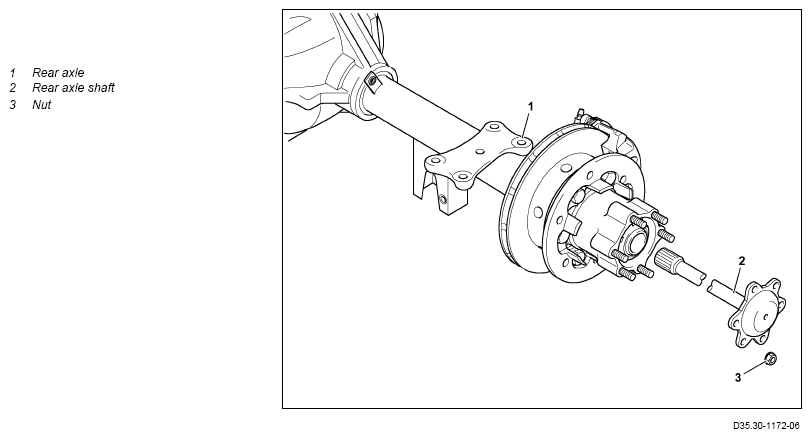

Shown on removed rear axle (1)

Caution	Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil	Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles.	AS00.40-Z-0001-01A
	Notes on threaded connections fastened using a tightening angle-based tightening process		AH00.00-P-0020-01A
	Clean
1	Clean wheel hub and rear axle shaft (2).	Assembly cleaner	*BR00.45-Z-1028-04A
	Remove
2	Unscrew nuts (3).
3	Remove rear axle shaft (2).	Collect oil which flows out. Commercially available devices/tools Collecting pan
	Clean
4	Clean flange of rear axle shaft (2).	Assembly cleaner	*BR00.45-Z-1028-04A
	Check
5	Check rear axle shaft (2).	If corresponding findings are present, ↓ Replace rear axle shaft (2).
	Install
6	Replace stud bolts of wheel hub.	Commercially available devices/tools Extractor tool for stud bolts Thread cuttersM10	AR35.20-D-0310-14TSR
		Stud on rear wheel hub	*BA35.20-N-1004-06C
		Assembly cleaner	*BR00.45-Z-1028-04A
7	Install rear axle shaft (2).	Coat flange with sealing compound. Sealant, Hylomar universal sealant 80 ml	*BR00.45-Z-1010-01A
8	Screw on nuts (3).	Nut, rear axle shaft to hub	*BA35.30-N-1003-01A
	Check
9	Check oil level of rear axle (1).	If corresponding findings are present, ↓ Correct oil level.
		Rear axle - oil change	AP35.00-D-3501TSR

HUB

Number	Designation		Rear axle 741.422/453/454/45 5/456
BA35.20-N-1004-06C	Stud on rear wheel hub	Nm	15

REAR AXLE SHAFT

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-01A	Sealant, Hylomar universal sealant 80 ml	A 001 989 25 20
BR00.45-Z-1028-04A	Assembly cleaner	A 000 986 56 01
