Rear Axle - Oil Change - AP35.00-D-3501TSR
Model 907 with rear axle 741.4
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
|---|---|---|---|
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Special instructions for lifting and supporting vehicle | AH00.60-N-0100-01TS | ||
| Draining | |||
| 1 | Lift vehicle with lifting platform. | ||

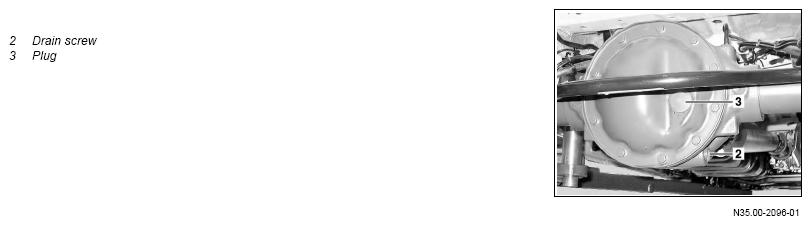

| AR00.60-D-1000-04TS | |||
| 2 | Clean area surrounding drain screw (2) and stop plug (3). | ||
| 3 | Remove stop plug (3). | ||
| 4 | Unscrew drain screw (2) and completely drain off transmission oil. | ||
| 5 | Clean drain screw magnet (2). | ||
| 6 | Screw in drain screw (2). | *BA35.10-N-1001-03A | |
| Pour in | |||
| 7 | Fill transmission with oil. | Always comply with the specified filling capacity. An incorrect oil filling capacity may lead to material damage. |
|
| *BF35.10-N-1001-01A | |||
| 8 | Install stop plug (3). | ||
| 9 | Lower vehicle with vehicle lift. | ||
| 10 | Confirm conducted operations in maintenance booklet or in Digital Service Booklet (DSB). |
| Number | Designation | Rear axle 741.421/422/423/45 3/454/455/456 | ||
|---|---|---|---|---|
| BA35.10-N-1001-03A | Drain screw | Stage 1 | Nm | 60 |
| Stage 2 | ∠° | 90 | ||
| Number | Designation | Rear axle 741.423 | Rear axle 741.421/422/453/45 4/455/456 | ||
|---|---|---|---|---|---|
| BF35.10-N-1001-01A | Gear oil | Filling capacity | Liter | 1,5 | 2,2 |
