Remove/Install Stud Bolts On Wheel Hub - Ar35.20-D-0310-14TSR
Model 907 with rear axle 741.422/453/454/455/456
| Number | Designation | Rear axle 741.422/453/454/45 5/456 | |
|---|---|---|---|
| BA35.20-N-1004-06C | Stud on rear wheel hub | Nm | 15 |
| Number | Designation | Order number 1 |
|---|---|---|
| BR00.45-Z-1028-04A | Assembly cleaner | A 000 986 56 01 |

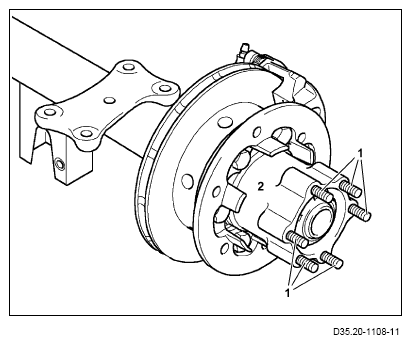

- Remove stud bolts (1) from wheel hub (2).
Commercially available devices/tools
Extractor tool for stud bolts
- Wheel hub (2).
- Check thread of stud bolts (1) in wheel hub (2).
If corresponding findings are present,
↓
recut thread of stud bolts (1) in wheel hub (2).
Thread cutters M10
- Screw in new stud bolts (1)
.
Extractor tool for stud bolts
