Remove/Install Mounting Support For Rear-End Door Hinge - Ar64.30-D-0851TS
Model 907.6/7

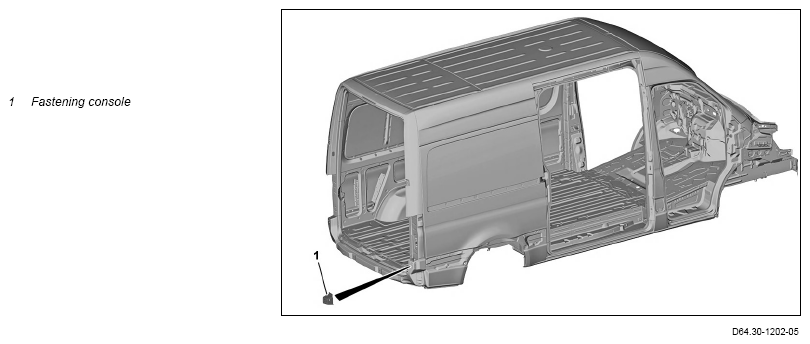

Shown on model 907.733 with code D03 (Roof and rear-end doors, high version), right side of vehicle
| Risk of death when working on component parts and systems with U >= 30 V alternating voltage (AC) or U >= 60 V direct voltage (DC) | Do not touch damaged or defective live component parts and lines or non-insulated electrical connections and lines. | ||
| Risk of death caused by vehicle slipping or toppling off of the lifting platform. | Align vehicle between vehicle lift columns and position the four support plates at the vehicle lift support points specified by the vehicle manufacturer. | AS00.00-Z-0010-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| General information on body repair | AH60.00-N-0001-01A | ||
| Remove | |||
| 1 | Remove all detachable parts in area of repair point. | ||
| 2 | Cover all detachable parts remaining in vehicle with welding protection blankets. | Welding protection blanket |
|
| 3 | Remove respective corner pillar paneling lower part. | AR64.30-D-5705TS | |
| 4 | Remove respective mounting support (1). | Rotary wire brush Spot weld milling machine Wet and dry vacuum cleaner |
AR64.30-D-0851-01TS |
| 5 | Prepare respective mounting support (1) for installation. | Hole punching pliers 6 mm Rotary wire brush |
AR64.30-D-0851-03TS |
| Install | |||
| The high voltage used for electric welding presents a lethal hazard. Risk of explosion from welding in areas close to highly inflammable materials. Risk of injury from weld splatter and UV-light when welding. Risk of poisoning from inhaling welding gases | Use insulating mats. Wear protective clothing, safety glasses and a protective mask. Remove highly inflammable materials from the hazard area. Use air extraction system. | AS00.00-Z-0007-01A | |
| 6 | Install respective mounting support (1). | AR64.30-D-0851-02TS | |
| Measures for preventing damage to vehicles or components when performing electric welding work | AH00.00-N-0005-01A | ||
| 000 588 01 84 00 Welder | Clamping pliers (Standard) Rotary wire brush Wet and dry vacuum cleaner |
WS60.00-P-0021K | |
| 7 | Install respective corner pillar paneling lower part. | AR64.30-D-5705TS | |
| 8 | Remove welding protection blankets. | Welding protection blanket |
|
| 9 | Install all detachable parts in area of repair point. |
