Remove Mounting Support For Rear-End Door Hinge - Ar64.30-D-0851-01TS
 |
Risk of injury
caused by scraping or cutting body parts on sharp vehicle parts |
Always wear protective gloves when working on or near sharp and non-deburred vehicle parts.
Deburr repair panels. |
AS00.00-Z-0017-01A |
Model 907.6/7
The following steps are shown on the left side of the vehicle and must be accomplished analogously on the right side in the event of damage.

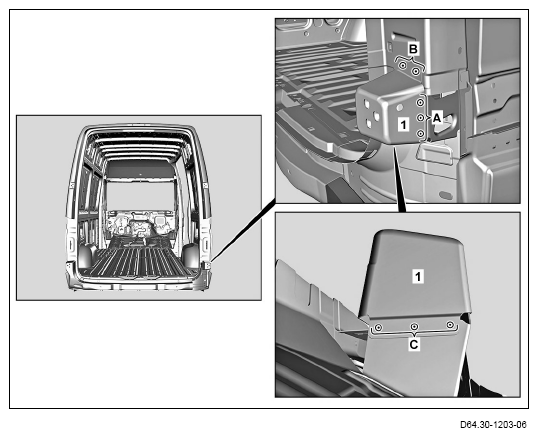

- Expose spot welds on mounting support (1) (areas A, B, and C).
- Cut off spot welds on mounting support (1) (areas A, B, and C).
- Remove damaged mounting support (1).
- Sand down mating surfaces to bare metal in cross-hatched areas.
- Remove shavings and milling chips.
