Retrofit Reversing Camera - An54.65-D-0030TSC

Model 907.1/2

with code E3M (MBUX multimedia system with 7-inch touch screen)

with code FR7 (Provision, electrics, reversing aid)

Model 907.1/2

with code E4M (MBUX multimedia system with 10.25-inch touchscreen)

with code FR7 (Provision, electrics, reversing aid)

	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on carrying out repair work in the vehicle interior		AH68.00-N-0001-01S
	Remove
1	Remove seat base cover from driver's seat.

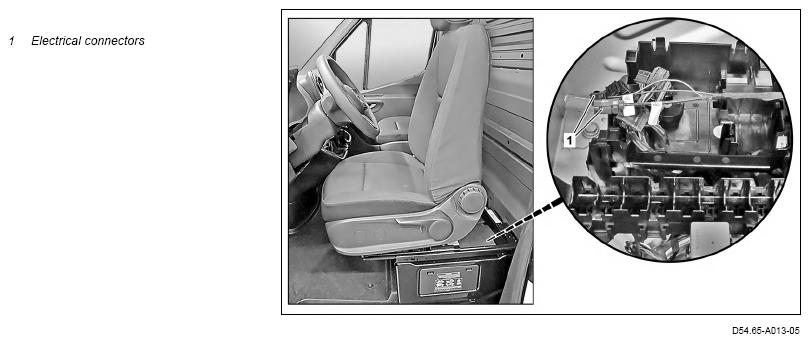

	Remove/install seat base for driver's seat	Do not remove seat base. The electrical connectors (1) of the reversing camera preinstallation are located in the seat base.	AR91.10-D-3521TS
	Install
2	Retrofit reversing camera wiring harness.	Do not kink wiring harness and make sure that it is routed such that no chafing can occur. This prevents damage. To do so, connect reversing camera wiring harness to electrical connectors (1). Secure reversing camera wiring harness section by section using cable ties at suitable points and on factory-installed electrical wiring harness. The routing of the reversing camera wiring harness to the installation location of the reversing camera varies depending on the model, wheelbase and box body.
3	Retrofit reversing camera.	Observe current body/equipment mounting directives for model 907. Only the digital reversing camera specifiec by Daimler AG may be used.
4	Install in the reverse sequence.	Operation step 1.
5	Enter special equipment into online vehicle data card.	4 Designation of special equipment concerned: code O1N (Reversing camera activation without guide lines). Attach a note "Reversing camera retrofitted as per AN54.65-D-0030TSC " under field organization texts to KG54.
6	Carry out SCN coding on electronic ignition lock control unit (EZS).
		Under the "Control unit adaptations" menu item follow the instructions for "SCN coding". Do not yet remove vehicle diagnosis system.	AR54.21-D-0015TS
7	Perform SCN coding on parking system control unit.
		Under the "Control unit adaptations" menu item follow the instructions for "SCN coding". Do not yet remove vehicle diagnosis system.	AR54.21-D-0015TS
8	Perform SCN coding on head unit control unit.
		Under the "Control unit adaptations" menu item follow the instructions for "SCN coding". Do not yet remove vehicle diagnosis system.	AR54.21-D-0015TS
9	Perform SCN coding on reversing camera (RFK) control unit.
		Under the "Control unit adaptations" menu item follow the instructions for "SCN coding". Do not yet remove vehicle diagnosis system.	AR54.21-D-0015TS
	Calibrate
10	Calibrate reversing camera using vehicle diagnosis system.	To do this, select the following menu items: Quick test - View → "B84/3 - Reversing camera" Adaptations Teach-in processes → Calibration (body manufacturers) Strictly observe the operation steps in XENTRY Diagnosis COM kit.
11	Disconnect diagnostic unit.
			AD00.00-D-2000-06TS
	Check
12	Perform function check of reversing camera.
