Remove/Install Front Seat Head Restraint Motor - AR91.29-P-1432LFA
Model 222
with code 439 (Intelligent/folding front comfort head restraint)
Angle adjustment and fold function motor
Shown on driver seat with CODE P46 (Individual entertainment in rear)
Shown on driver seat without CODE P46 (Individual entertainment in rear)

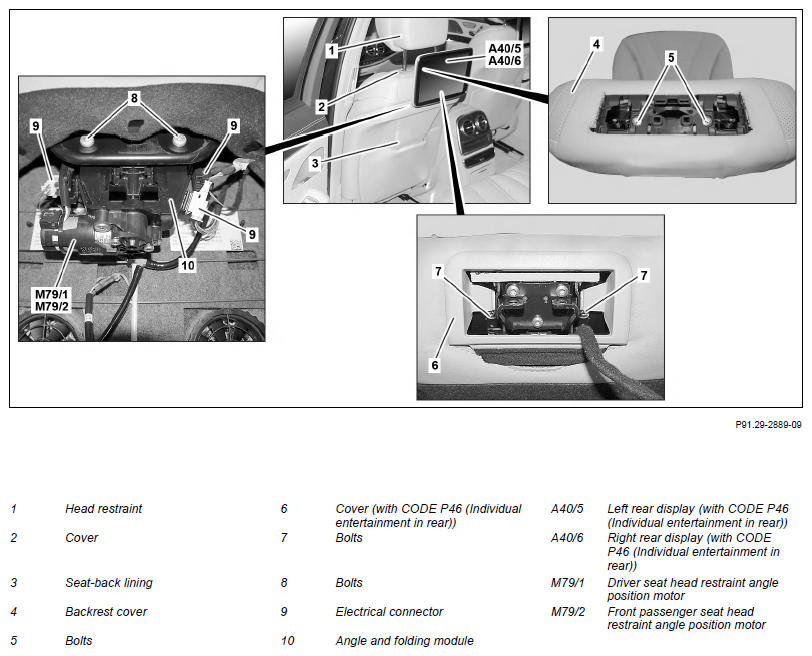

Fig 1: Front Seat Head Restraint Angle Adjustment And Fold Function Motor Components Location - Model 222 Except Code 439
| Remove/install | |||
| 1 | Remove head restraint (1) on driver or front passenger seat | AR91.16-P-0040LFA | |
| 2 | Remove left rear display (A40/5) or right rear display (A40/6) | MODEL 222 with CODE P46 (Individual entertainment in rear) | |
| AR82.60-P-7720LF | |||
| 3 | Remove seat-back lining (3) on driver or front passenger seat backrest | AR91.10-P-1910LF | |
| 4 | Unclip and remove cover (2) | On vehicles with CODE P07 (Chauffeur package) and work on front passenger seat. | |
| 5 | Remove bolts (5) | ||
| 6 | Unclip and remove cover (6) | MODEL 222 with CODE P46 (Individual entertainment in rear) | |
| 7.1 | Remove screws/bolts (7) located behind cover (6) | MODEL 222 with CODE P46 (Individual entertainment in rear) | |
| 7.2 | Carefully push backrest cover (4) backwards, as shown in picture A, with an assembly wedge (11), then push backrest cover (4) downwards and remove screws/bolts (7) | MODEL 222 without CODE P46 (Individual entertainment in rear) Otherwise the backrest cover (4) may rip. |
|

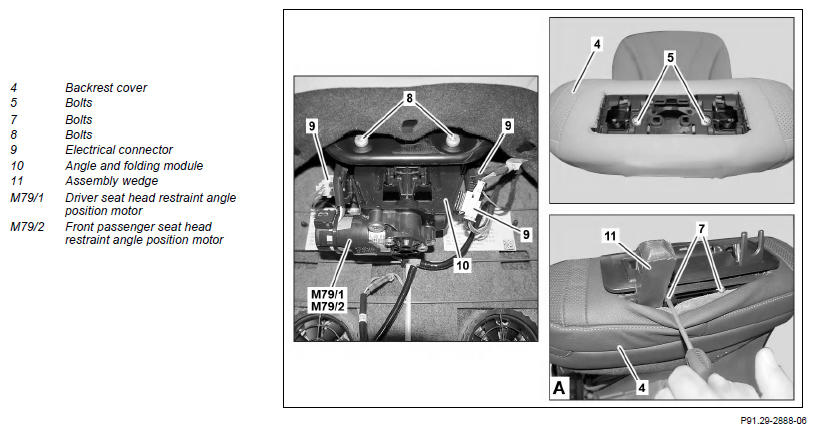

| Fig 2 | |||
| 8 | Disconnect electrical connectors (9) and detach wiring harnesses from angle and folding module (10) | ||
| 9 | Remove screws/bolts (8) | ||
| 10 | Remove angle and folding module (10) with driver seat head restraint inclination motor (M79/1) or front passenger seat head restraint inclination motor (M79/2) | ||
| 11 | Install in the reverse order | ||
| 12 | Connect XENTRY and perform seat normalization on front passenger seat or on driver seat | ||
|
AD00.00-P-2000-04B |
