Remove/Install Front Seat Backrest - AR91.10-P-1060LF

Model 217

Model 222

MODIFICATION NOTES

15.07.2014

Screw backrest to seat frame

Model 222

BA91.10-P-1002-01S

Courtesy of MERCEDES-BENZ USA

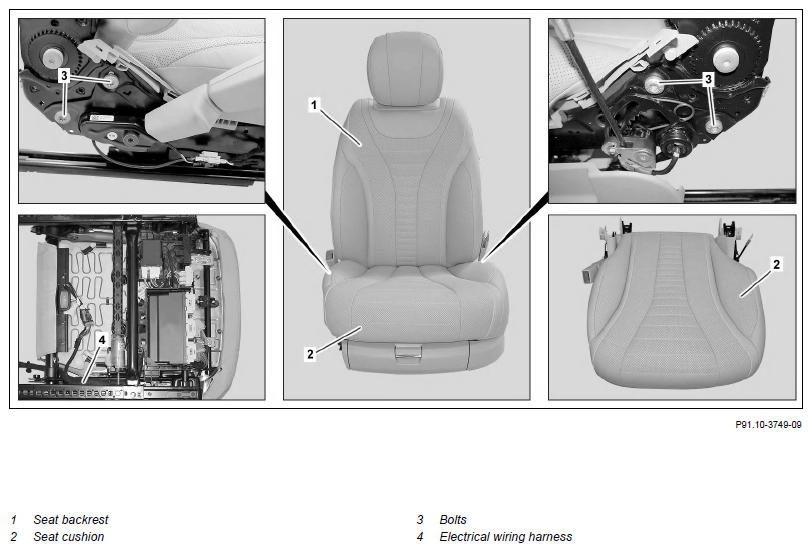

Shown on Model 222

	Remove/install
1	Remove left or right front seat		AR91.10-P-1000LF
2	Remove seat-back lining from backrest (1)		AR91.10-P-1910LF
3	Remove outer and inner paneling at rear		AR91.10-P-1200LF
4	Remove screws/bolts (3)	Screw/bolt, backrest to seat frame	*BA91.10-P-1002-01S
5	Remove backrest (1) and place on a clean mat	Carefully remove backrest (1) from seat cushion (2). Otherwise, the cover of the seat cushion (2) will be damaged.
6	Expose electrical wiring harness (4) in seat adjustment unit and guide out of seat adjustment unit	Observe routing and attachment of electrical wiring harness (4).
7	Install in the reverse order

FRONT SEATS

Number	Designation		MODEL 217	MODEL 222
BA91.10-P-1002-01S	Screw/bolt, backrest to seat frame	Nm	40	50
