Remove/Install Additional Engine Radiator - AR20.20-P-3867MNL
Engine 176 In Model 217, 222
| Risk of injury to skin and eyes suffering scalding from contact with hot coolantspray. Risk of poisoning from swallowing coolant. | Do not open cooling system unless coolant temperature is below 90°C. Open cap slowly and release the pressure. Do not pour coolant into beverage containers. Wear protective gloves, protective clothing and safety glasses. | AS20.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Topical note | Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | |
| Remove/install | |||
| 1 | Drain off coolant | AR20.00-P-1142MNL | |

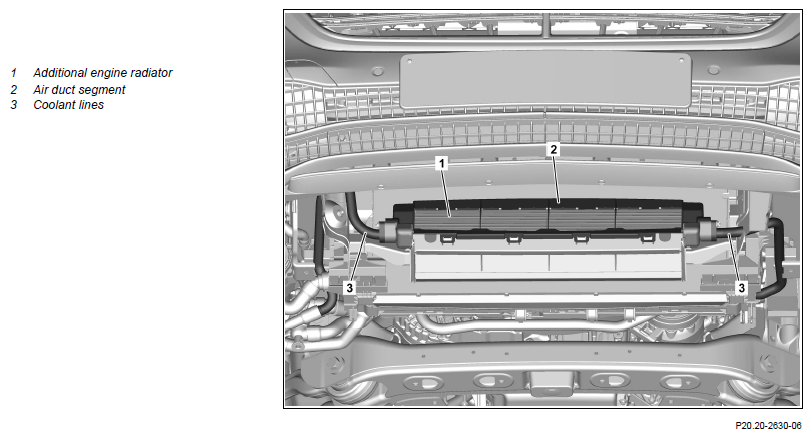

| 2 | Remove coolant lines (3) from additional engine radiator (1) | *BA00.10-P-1002-04A | |
| 3 | Unclip air duct segment (2) | ||
| 4 | Remove additional engine radiator (1) in downward direction | ||
| 5 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear closed and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Perform an engine test run and check engine for proper operation and leaktightness | ||
| 7 | Install center and front lower engine compartment paneling | AR61.20-P-1105LF |
METRIC SCREWS/BOLTS AND NUTS AS PER MBN 10 105, 10 143
| Number | Designation | 8.8 | 10.9 | |
|---|---|---|---|---|
| BA00.10-P-1002-04A | M6X1 | Nm | 9 | 13 |
