Remove/Install Front Door Window Lifter - AR72.10-P-1800LFS

Model 222

with code Z07 (B7 armoring on special protection version)

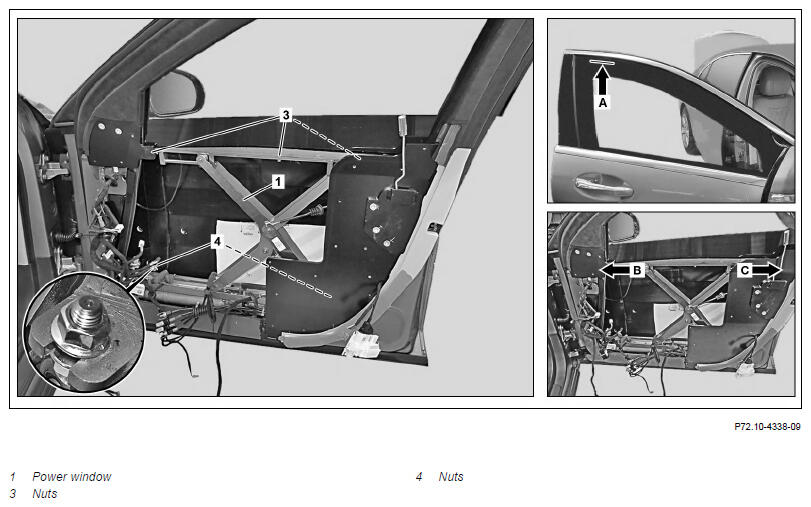

Fig 1: Front Door Window Lifter/Regulator Components Location - Model 222 (With Code Z07)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  to skin or eyes from hydraulic fluid spraying out under pressure. Risk of poisoning from swallowing hydraulic fluid.	Depressurize hydraulic system completely before starting any work on it. Wear protective clothing and safety glasses.	AS00.00-Z-0013-01A
	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Risk of injury  from pinching or crushing hands and feet when working on windows.	Secure the windshields and windows against falling down; use only specified lifting tools; wear safety shoes.	AS67.00-Z-0003-01A
Topical note	Notes on avoiding damage to windows installed in special high-security vehicles		AH67.00-P-0003-01FB
	Remove
1	Remove door module on front door		AR72.10-P-0900LFS
2	Remove valve unit from door module		AR72.10-P-0012LF
3	Remove expansion reservoir from door module		AR72.10-P-0013LF
		Do not detach hydraulic line from expansion reservoir.
4	Remove front door control unit from door module	Model 222 with code Z07 (B7 armoring on special protection version)
		Model 222.1 with code Z07 (B7 armoring on special protection version)	AR72.29-P-1001LFS
5	Connect hydraulic lines of valve unit to hydraulic lines of hydraulic cylinder and oil pump	Hydraulic lines are color-coded.
6	Connect power window operating unit to wiring harness and front door control unit
7	Open side window by 2 cm
8	Mark side window 6 mm from top edge (arrow A)
9	Close side window completely and secure against falling down with clamping pliers	Clamping pliers	Fig 2
10	Unscrew nuts (3)
11	Lower power window (1) but ensure that nuts (4) are still accessible
12	Unscrew nuts (4)
13	Release pressure in pressure reservoir for hydraulic power window (1) in front door		AR72.10-P-1800-06LFS
		The pressure reservoir for the front door hydraulic power window assembly (1) must be relieved of pressure. Otherwise, the couplings of the hydraulic lines can no longer be connected.
14	Disconnect hydraulic lines of valve unit from hydraulic lines of hydraulic cylinder and oil pump
15	Remove rear bracket (toward B-pillar) for power window (1)
16	Remove power window (1) together with front bracket (toward A-pillar)
17	Secure side window from bottom against falling down using suitable support
	Install
18	Remove support for side window
19	Install power window (1) with front bracket (toward A-pillar)
20	Install rear bracket (toward B-pillar) for power window (1)
21	Replace screw plug of expansion reservoir with a bleed screw	When replacing power window (1). If the screw plug on the expansion reservoir is not replaced, leakage may occur and the system may fail.
22	Connect hydraulic lines of valve unit to hydraulic lines of hydraulic cylinder and oil pump
23	Roll up power window (1)
24	Fit the nuts (4)	There must be a distance of 5 mm between the inside of the power window (1) and the door lining and at least 3 mm between the power window and door paneling (armor plate). Otherwise the power window (1) may be damaged.
25	Carefully extend power window (1) until power window (1) makes contact with bottom edge o' side window	When lifting power window (1), ensure that the threaded pins of the side window and the holes in the power window (1) coincide.
26	Carefully screw on nuts (4) until marking (arrow A) is reached
27	Center power window (1) in relation to side window (arrows B and C)	Center power window (1) in relation to side window. Otherwise the window guides may be damaged.
28	Fit nuts (3)
29	Tighten nuts (4)	Nut, window lifter to front door	*BA72.10-P-1018-01Y
30	Spray nuts (4) and threads with preserving wax	Wax for engine compartment (400 ml spray can)	*BR00.45-Z-1018-05A
31	Tighten nuts (3)	Nut, side window to window lifter	*BA72.10-P-1006-01Y
32	Remove clamping pliers
	Check
33	Check catches on power window (1)	Catches should mesh. Otherwise the power window (1) must be readjusted.
34	Carefully move power window (1) in and out of front door	Power window (1) must not come into contact with window guides. Otherwise the window guide may be damaged. The side window must not retract more than 5 mm into the upper door frame. Otherwise damage may occur. Leave a clearance of approx. 2 mm between power window (1) and brackets for power window (1). Otherwise damage may occur. Leave a clearance of approx. 1 mm between power window (1) and rear armor plate. Otherwise damage may occur.
35	Check correct fit of ball joints in brackets of power window (1)	Ball joints should not come into contact with power window (1). Otherwise noise may occur.
	Install
36	Mount valve unit on door module		AR72.10-P-0012LF
37	Mount expansion reservoir on door module		AR72.10-P-0013LF
38	Mount front door control unit on door module	Model 222 with code Z07 (B7 armoring on special protection version)
		Model 222.1 with code Z07 (B7 armoring on special protection version)	AR72.29-P-1001LFS
39	Install door module		AR72.10-P-0900LFS

Fig 2: Identifying Clamping Pliers (220 589 04 31 00)

Courtesy of MERCEDES-BENZ USA
