Remove/Install Camera Cover Control Unit - AR54.21-P-0023LWX
Model 253
with code 218 (Rear view camera)
Model 253
with code 501 (360° camera)
Shown on model 253.3 with code 218 (Reversing camera)
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Notes on HANDS-FREE ACCESS | Model 253 with code 218 (Rear view camera) with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO) Model 253 with code 501 (360° camera) with code 871 (HANDS-FREE ACCESS) with code 889 (KEYLESS-GO) |
AH80.61-P-0001-01A | |
| Remove/install | |||
| 1 | Commission camera cover control unit (N42) | When replacing camera cover control unit (N42). | |
| AD00.00-P-2000-04B | |||
| 2 | Switch off ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 3 | Remove luggage compartment trim on left | Model 253 (except 253.992/993) with code 218 (Rear view camera) with code 501 (360° camera) |
AR68.30-P-1180LWG |
| Model 253.992/993 with code 218 (Rear view camera) with code 501 (360° camera) |
AR68.30-P-1180RFW | ||

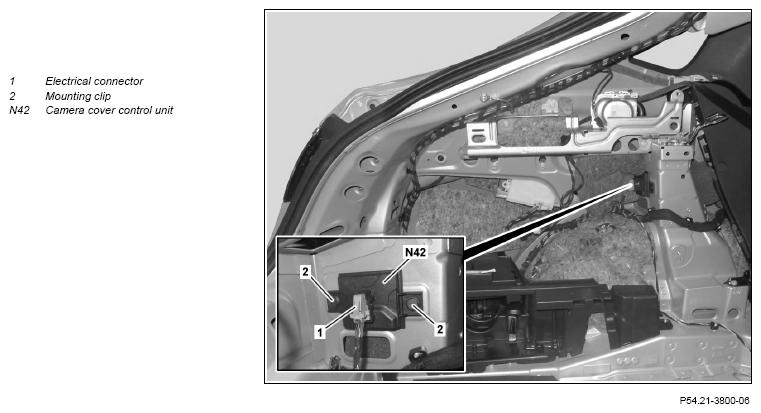

| 4 | Disconnect electrical connection (1) | ||
| 5 | Remove retaining clips (2) and remove camera cover control unit (N42) | ||
| 6 | Install in the reverse order |
