Remove/Install Load Compartment Inner Side Paneling - AR68.30-P-1180LWG

Model 253 (except 253.992/993), 293

Shown on model 253.9

Courtesy of MERCEDES-BENZ USA

Shown on model 253.3, at left side of vehicle

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on HANDS-FREE ACCESS		AH80.61-P-0001-01A
	Remove/install
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).

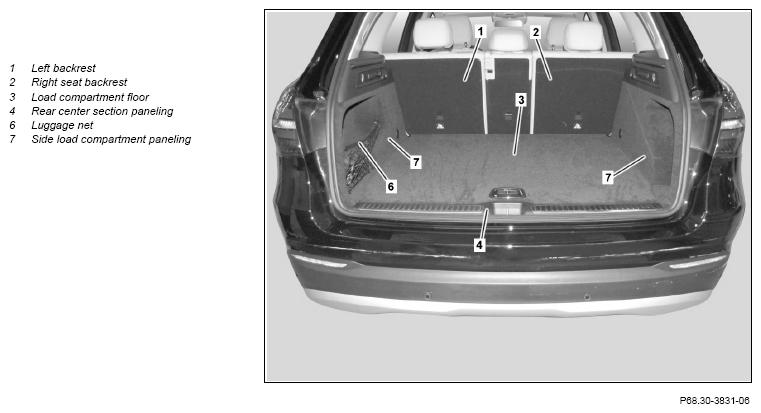

2	Unlock left seat backrest (1) or right seat backrest (2).
3	Unlock luggage compartment cover and remove.
4	Remove load compartment floor (3).	Model 253 (except 253.992/993), 293 Model 253.311/353/911/953	AR68.80-P-5800LWG
5	Remove rear-end center-section trim (4).		AR68.30-P-4785LWS
6	Remove cover (5).

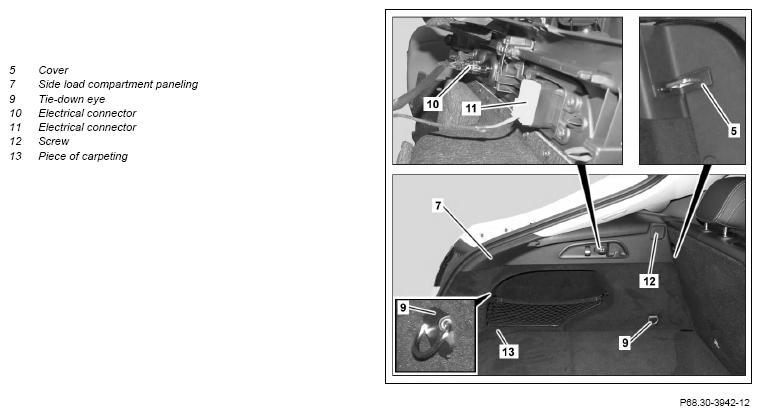

7	Unclip luggage net (6) at bottom.	When removing left side load compartment paneling (7).
8	Unclip carpet section (13) and remove.
9	Remove screw (12).	Model 253.3, 293
10	Remove tie-down eyes (9) at side load compartment trim (7).	Screw/bolt for tie-down eye	*BA68.50-P-1001-03I
11	Unclip side load compartment trim (7) in upper area.	Carefully unclip side load compartment paneling (7). Otherwise the electrical connectors (10, 11) below can be damaged.
12	Disconnect electrical connections (10, 11).	The number can vary according to the equipment.
13	Remove side load compartment trim (7).	Model 253.3 Carefully guide side load compartment paneling (7) along C-pillar paneling. Otherwise the C-pillar paneling can be damaged.
14	Install in the reverse order.
