Remove/Install Trim At C-Pillar - AR68.30-P-4490LWG
Model 253 (except 253.992/993), 293
Shown on model 253.9 except code 460 (Canada version) and except code 494 (USA version) on the right side of the vehicle
Shown on model 253.9 with code 494 (USA version) on the right side of the vehicle
| Remove/install | |||
| 1.1 | Unfasten side load compartment trim (2) in the area of the C-pillar. | Model 253.1, 253.9 (except 253.992/993), 293 | AR68.30-P-1180LWG |
| 1.2 | Remove side load compartment trim (2). | Model 253.3 | AR68.30-P-1180LWG |
| 2.1 | Remove side trim in the rear passenger compartment (1). | Model 253.1, 253.9 (except 253.992/993), 293 | AR68.30-P-4780EQ |
| 2.2 | Unfasten side trim in the rear passenger compartment (1) in the top area. | Model 253.3 | AR68.30-P-4780EQ |
| 3 | Unfasten edge guard (3) in the area of the C-pillar. | ||

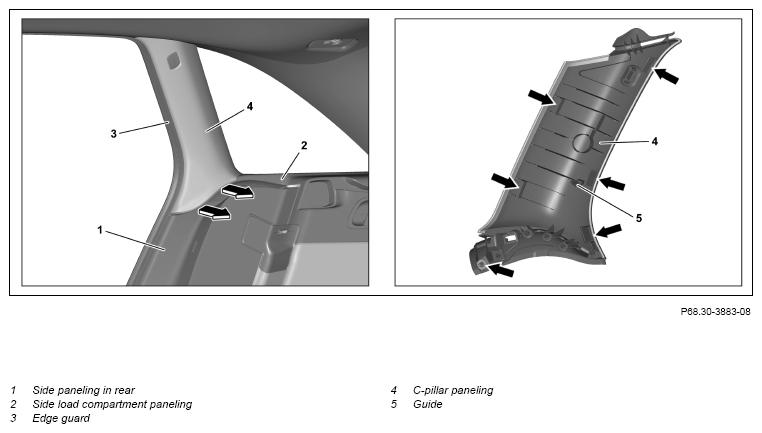

| 4 | Unclip C-pillar trim (4) (arrows) and remove in the direction of the arrow. | Fig 2 | |
| 5 | Install in the reverse order. | ||
| Check | |||

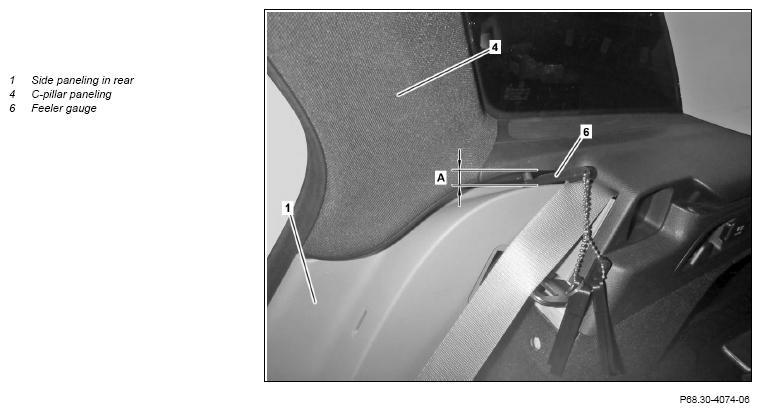

| 6 | Check gap dimension (A) between the side trim in the rear passenger compartment (1) and C-pillar trim (4) with the feeler gauge (6). | Model 253.9 (except 253.992/993), 293 with code 460 (Canada version) Model 253.9 (except 253.992/993), 293 with code 494 (US version) If the gap dimension (A) deviates, ↓ Correct the gap dimension (A) by moving the installed C-pillar trim (4). |
