Remove/Install Front Door - AR72.10-P-0500LW

Model 205.0/1/2

Model 213

Model 253

Model 293

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove/install

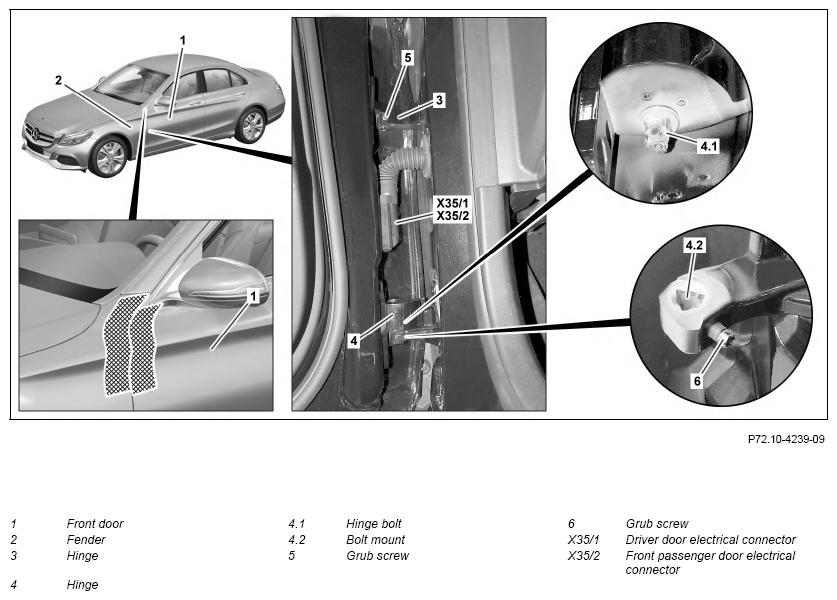

1	Fully lower front door side window (1).
2	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
3	Disconnect ground line from battery.	Model 205.0/1/2 Model 213 Model 253	AR54.10-P-0003LW
		Model 293	AR54.10-P-0003EQ
4	Mask off fender (2) and front door (1) in cross-hatched area with fabric tape.
5	Disconnect electrical connector of driver's door (X35/1) or electrical connector of front passenger door (X35/2).
6	Remove cover of grub screw (5).
7	Unscrew grub screws (5, 6) of hinges (3, 4) by 3 turns.	: Repair paint damage in area of grub screws (5, 6).
		Grub screw for hinge separation	*BA72.10-P-1003-01W
8	Remove front door (1) from lower hinge leaves and set down on a suitable base.	Carefully remove and install front door (1). If the front door (1) comes into contact with the vehicle, the paint can be damaged. Helper required. : The exterior contour of the hinge bolt (4.1) should be flush with the inside contour of the bolt mount (4.2).
9	Install in the reverse order
	Check
10	Check gap dimensions of front door (1).	Driver's door	AR72.10-P-0551LW
		Passenger door	AR72.10-P-0552LW
11	Normalize window lifter.
