Adjust Front Passenger Door - AR72.10-P-0552LW

Model 205

Model 213

Model 253

Model 293

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

Courtesy of MERCEDES-BENZ USA

Shown on model 205.0

	Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Notes on safety-relevant components		AH00.00-Z-0019-01A
	Remove
1	Switch off ignition and store transmitter key outside of transmission range (min. 2 m).
2	Remove screws (14) and remove lock striker (13).
	Check
3	Check adjustment of front passenger door (1).	Model 205, 253, 293	AR60.00-P-0700-01LW
		Model 213	AR60.00-P-0700-01LWE
		The contour of the front fender must align with the contour of the front passenger door (1) or project by a maximum of 1 mm.
		Model 293 Front door cover to rear door cover	BE60.00-P-1011-01OA
		Model 293 Front door to rear door	BE60.00-P-1009-01OA
		Model 293 Front door to fender	BE60.00-P-1008-01OA
		Model 205 Front door to fender	BE60.00-P-1008-01BB
		Model 205.0/1/2 Front door to rear door	BE60.00-P-1009-01BB
		Model 205.0/1/2 Front door cover to rear door cover	BE60.00-P-1011-01BB
		Model 205.3/4 Longitudinal member panel to front door	BE60.00-P-1030-01BB
		Model 205.3/4 Front door to sidewall	BE60.00-P-1007-01BB
		Model 205.3/4 Front door window to rear side window	BE60.00-P-1029-01BB
		Model 213 Front door to fender	BE60.00-P-1007-01GA
		Model 213 Front door to rear door	BE60.00-P-1008-01GA
		Model 213 Front door cover to rear door cover	BE60.00-P-1010-01GA
		Model 253 Front door to fender	*BE60.00-P-1006-01FA
		Model 253 Front door to rear door	*BE60.00-P-1007-01FA
		Model 253 Front door cover to rear door cover	*BE60.00-P-1009-01FA
		Feeler gauge	Fig 1
	Remove
4	Remove glove compartment (6).	When adjusting gap dimensions.
		Model 205, 253, 293	AR68.10-P-1400LW
		Model 213	AR68.10-P-1402LWE
5	Remove door sill trim (7).	When adjusting gap dimensions.
		Model 205.0/1/2, 213, 253, 293	AR68.30-P-4100LW
		Model 205.3/4	AR68.30-P-4100CLW
6	Disconnect ground line from battery.	When adjusting gap dimensions.
		Model 205, 213, 253	AR54.10-P-0003LW
		Model 293	AR54.10-P-0003EQ
7	Unclip front passenger side A-pillar fuse box (F1/3) from A-pillar (8) (arrows) and set aside.	When adjusting gap dimensions. Do not disconnect electric lines of front passenger side A-pillar fuse box (F1/3).
8	Remove upper insulation insert (9).	When adjusting gap dimensions. The upper A-pillar insulation insert (9) is inserted into the A-pillar (8) before the nuts (5).
	Adjust

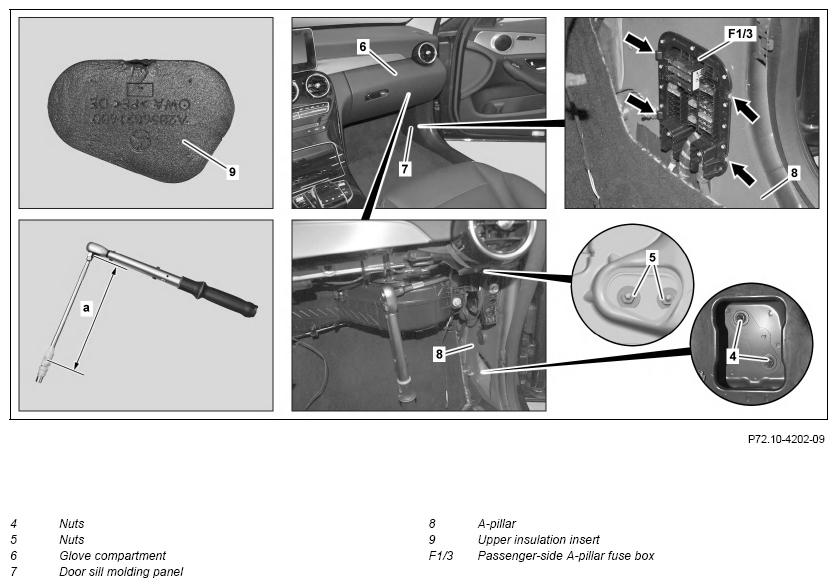

9	Loosen nuts (4, 5) on A-pillar (8) one after the other, adjust front passenger door (1), and tighten corresponding nuts (4, 5) again.	When adjusting gap dimensions. Do not loosen nuts (4, 5) simultaneously. If the front passenger door (1) comes into contact with other components, the paint can be damaged. Do not tension hinges (2, 3) when adjusting. Otherwise the hinges (2, 3) can be damaged. Model 205.3/4 Three nuts (4) are installed. To loosen and tighten nuts (5) a socket wrench extension with a length of (a) ≥ 250 mm and a socket wrench joint are required in addition.
		Model 293 Front door cover to rear door cover	BE60.00-P-1011-01OA
		Model 293 Front door to rear door	BE60.00-P-1009-01OA
		Model 293 Front door to fender	BE60.00-P-1008-01OA
		Nut, hinge to A-pillar	*BA72.10-P-1002-01W
		Model 205 Front door to fender	BE60.00-P-1008-01BB
		Model 205.0/1/2 Front door to rear door	BE60.00-P-1009-01BB
		Model 205.0/1/2 Front door cover to rear door cover	BE60.00-P-1011-01BB
		Model 205.3/4 Longitudinal member panel to front door	BE60.00-P-1030-01BB
		Model 205.3/4 Front door to sidewall	BE60.00-P-1007-01BB
		Model 205.3/4 Front door window to rear side window	BE60.00-P-1029-01BB
		Model 213 Front door to fender	BE60.00-P-1007-01GA
		Model 213 Front door to rear door	BE60.00-P-1008-01GA
		Model 213 Front door cover to rear door cover	BE60.00-P-1010-01GA
		Model 253 Front door to fender	*BE60.00-P-1006-01FA
		Model 253 Front door to rear door	*BE60.00-P-1007-01FA
		Model 253 Front door cover to rear door cover	*BE60.00-P-1009-01FA
		Feeler gauge	Fig 1

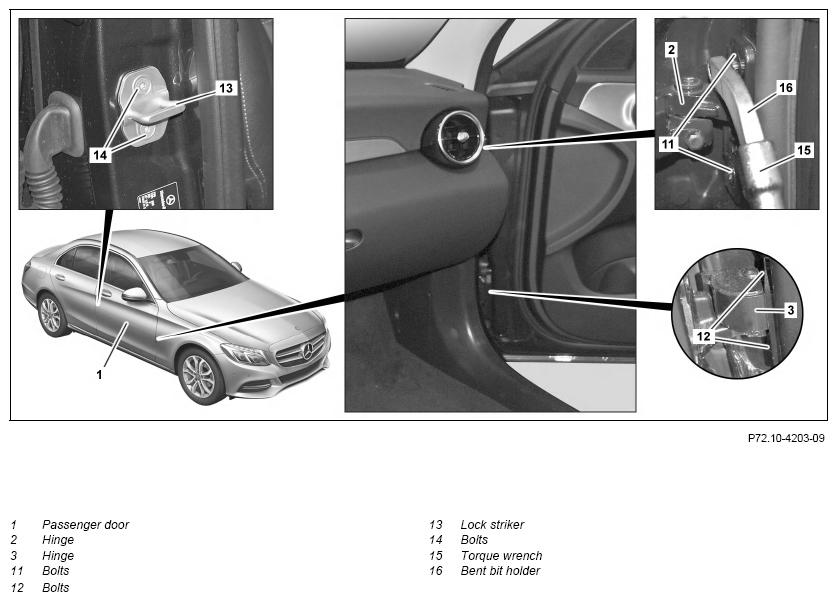

10	Loosen screws (11, 12) on front passenger door (1) one after the other, adjust transition to front fender, and tighten corresponding screws (11, 12) again. Note on calculation of tightening torque when using insertion or socket tools with various effective lengths	When adjusting transition to front fender. Do not loosen bolts (11, 12) simultaneously. If the front passenger door (1) comes into contact with other components, the paint can be damaged. Do not tension hinges (2, 3) when adjusting. Otherwise the hinges (2, 3) can be damaged. The contour of the front fender must align with the contour of the front passenger door (1) or project by a maximum of 1 mm. To tighten the screws (11, 12), use a torque wrench (15) in combination with a bent bit holder (16).	AH00.00-P-0015-01CW
		Screw/bolt, hinge to front door	*BA72.10-P-1001-01W
11	Position lock striker (13) on B-pillar and screw in screws (14) up to stop.	It must still be possible to adjust lock striker (13).
12	Align lock striker (13) by carefully closing front passenger door (1).	Model 205.0/1/2, 213, 253, 293 The contour of the front passenger door (1) must align with the contour of the rear door or project by a maximum of 1 mm. Model 205.3/4 The contour of the front passenger door (1) must align with the contour of the side wall or project by a maximum of 1 mm.
13	Tighten screws (14) of lock striker (13) on B-pillar.	Bolt, lock striker to B-pillar	*BA72.10-P-1004-01W
	Install
14	Repair paint damage on bolt heads of screws (11, 12).	If the transition to the front fender is adjusted.
15	Protect front passenger door (1) and A-pillar (8) in area of both hinges (2, 3) against corrosion.	Wax for engine compartment (400 ml spray can)	*BR00.45-Z-1018-05A
16	Install upper insulation insert (9).	If gap dimensions have been adjusted.
17	Clip right A-pillar fuse box (F1/3) into A-pillar (8).	If gap dimensions have been adjusted.
18	Install door sill trim (7).	If gap dimensions have been adjusted.
		Model 205.0/1/2, 213, 253, 293	AR68.30-P-4100LW
		Model 205.3/4	AR68.30-P-4100CLW
19	Install glove compartment (6).	If gap dimensions have been adjusted.
		Model 205, 253, 293	AR68.10-P-1400LW
		Model 213	AR68.10-P-1402LWE
20	Connect ground line to battery.	If gap dimensions have been adjusted.
		Model 205, 213, 253	AR54.10-P-0003LW
		Model 293	AR54.10-P-0003EQ
	Calibrate
21	Calibrate right side camera with diagnostic system.
		Model 293 with code 501 (360° camera)	AD00.00-P-2000-06FR
		Model 205, 213, 253 with code 501 (360° camera)	AD00.00-P-2000-04B
