Retrofit CD Drive - AZ82.64-P-0002RFD

Model 257

with code 498 (Japanese version)

with code 531 (COMAND APS)

except code 320 (Single CD drive preinstallation)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove fragrance generator.	Model 257 with code 498 (Japanese version) with code 531 (COMAND APS) with code P21 (Air quality package) except code 320 (Single CD drive preinstallation)
2	Remove glove compartment housing.
			AR68.10-P-1402FR
3	Remove armrest cap from center console.
			AR68.20-P-2370FR
4	Remove head unit.
			AR82.85-P-1101FR
5	Release HERMES control unit with holder and place to one side with connected lines.
			AR82.95-P-0019FR
6	Remove COMAND display.
			AR82.85-P-7429FR
7	Remove bottom trim for instrument panel on driver's side.
			AR68.10-P-1501FR
8	Release fuse and relay module on driver's side.
		Until slot "f202" of the driver's side fuse and relay module is accessible.	AR54.15-P-0003FR
9	Remove door sill on driver's side.
	Install
10	Attach cutout on cap of armrest.		AZ82.64-P-0002-09LWA

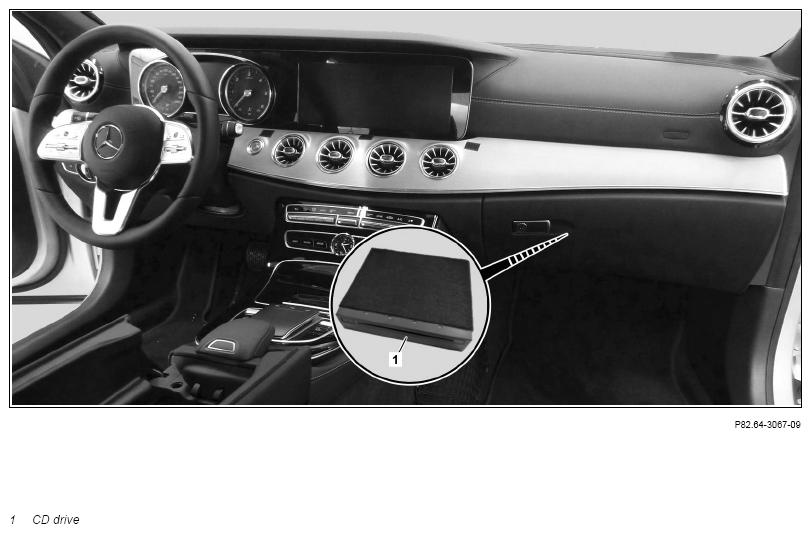

11	Produce drilling template for holder of CD drive (1).	Model 257.### 1# with code 498 (Japanese version) with code 531 (COMAND APS) except code 320 (Single CD drive preinstallation)	AZ82.64-P-0002-04LWE
		Model 257.### 2# with code 498 (Japanese version) with code 531 (COMAND APS) except code 320 (Single CD drive preinstallation)	AZ82.64-P-0002-04LWR
12	Produce adhesive film cutting template for CD drive (1).	Model 257 with code 498 (Japanese version) with code 531 (COMAND APS) except code 320 (Single CD drive preinstallation) except code 460 (Canada version) except code 494 (US version)	AZ82.64-P-0002-05LWE
13	Cut adhesive film to size using cutting template.
14	Prepare glove compartment housing for installation of CD drive (1).	Model 257.### 1# with code 498 (Japanese version) with code 531 (COMAND APS) except code 320 (Single CD drive preinstallation) except code 460 (Canada version) except code 494 (US version)	AZ82.64-P-0002-08LWE
		Model 257.### 2# with code 498 (Japanese version) with code 531 (COMAND APS) except code 320 (Single CD drive preinstallation)	AZ82.64-P-0002-08LWR
15	Prepare holder for CD drive (1) for installation.	Model 257 with code 498 (Japanese version) with code 531 (COMAND APS) except code 320 (Single CD drive preinstallation) except code 460 (Canada version) except code 494 (US version)	AZ82.64-P-0002-06LWE
16	Retrofit wiring harness for CD drive (1).		AZ82.64-P-0002-01LWA
Topical note	Notes on the use of paint scraping nuts on ground connections		AH00.19-P-1000-20A
		Left footwell ground point	*BA00.19-P-1021-02D
17	Retrofit CD drive (1) in glove compartment housing.	Model 257 with code 498 (Japanese version) with code 531 (COMAND APS) except code 320 (Single CD drive preinstallation) except code 460 (Canada version) except code 494 (US version)	AZ82.64-P-0002-03LWE
18	Install glove compartment housing with CD drive (1).
			AR68.10-P-1402FR
19	Insert a fuse with a fuse rating of 5 A into the slot "f202" of the driver's side fuse and relay module.	The slot "f202" of the driver's side fuse an relay module is labeled.
20	Install armrest cap on center console.
		Guide USB port plug through produced cutout.	AR68.20-P-2370FR
21	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
22	Enter special equipment into online vehicle data card.	Code 320 (Single CD drive pre-installation)
23	Attach note "CD drive retrofitted as per AZ82.64-P-0002RFD" under field organization texts to KG 54 and KG 82.
	Check
24	Perform function test.	See Owner's Manual.
