Retrofit CD Drive In Glove Compartment - AZ82.64-P-0002-03LWE
Model 213.0 (except 213.088/089), 213.2 (except 213.288/289)
Model 213.088/089/288/289 except code 460 (Canada version) except code 494 (US version)
Model 238.3
except code 460 (Canada version)
except code 494 (US version)
Model 257
except code 460 (Canada version)
except code 494 (US version)
Model 290
except code 460 (Canada version)
except code 494 (US version)

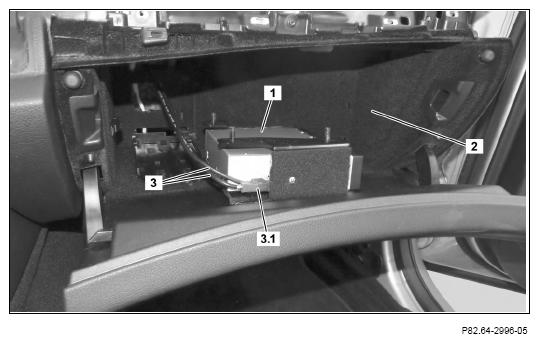

- Place CD drive with bracket (1) into glove compartment (2).
- Connect connector (3.1) of CD drive wiring harness (3) to CD drive with bracket (1).

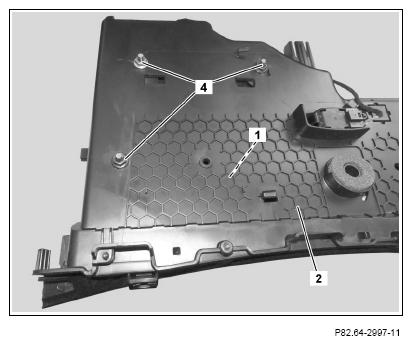

- Guide threaded pins of CD drive with holder (1) through bores in glove compartment (2) and secure with self-locking nuts (4).>

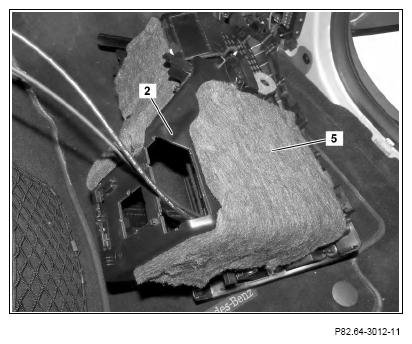

- Hang absorbent non-woven cloth (5) on glove compartment housing (2).
