Retrofit CD Drive - AZ82.64-P-0002RFB

Model 257

with code 320 (Single CD drive preinstallation)

with code 460 (Canada version)

Model 257

with code 320 (Single CD drive preinstallation)

with code 494 (US version)

Courtesy of MERCEDES-BENZ USA

Topical note	Information on preventing damage to electronic components due to electrostatic discharge		AH54.00-P-0001-01A
	Remove
1	Remove glove compartment housing.

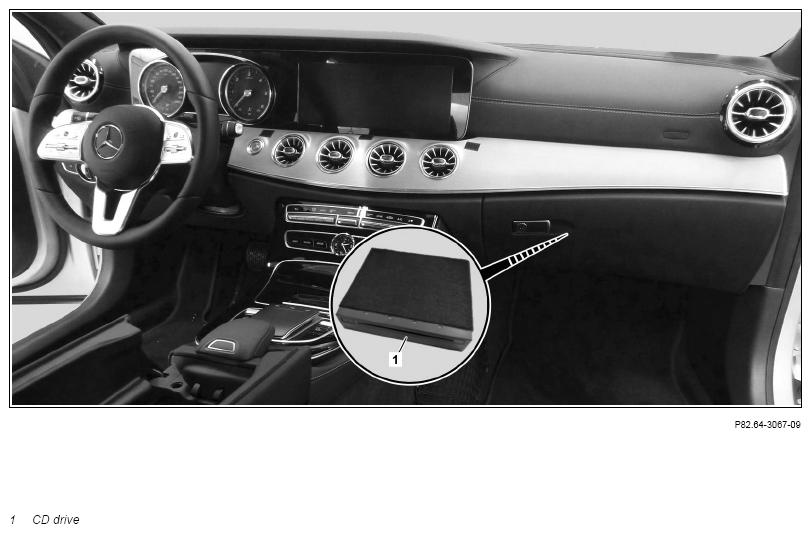

		The electrical wiring harness for the CD drive (1) is fixed in place before the glove compartment housing on the instrument panel cross member.	AR68.10-P-1402FR
	Install
2	Prepare adhesive film cutting template for CD drive (1).		AZ82.64-P-0002-05LF
3	Cut adhesive film to size using cutting template.
4	Prepare cutting template for CD drive (1).		AZ82.64-P-0002-10LWP
5	Prepare glove compartment housing for installation of CD drive (1).		AZ82.64-P-0002-08LWP
6	Make cutout on glove compartment housing.		AZ82.64-P-0002-11LWP
7	Release electrical wiring harness for CD drive (1) from instrument panel crossmember.
8	Place glove compartment housing into front passenger footwell.
9	Retrofit CD drive (1) into glove compartment housing.		AZ82.64-P-0002-03LWR
10	Attach absorber fleece sheets to the glove box.
11	Install glove compartment housing with CD drive (1).
		Pay attention to installation of lines.	AR68.10-P-1402FR
12	Install remaining parts.
	Update Vehicle Documentation (VeDoc)
13	Attach "CD drive retrofitted as per AN82.64-P-0002RFB" note under field organization texts.	On design group 82 and design group 54.
	Check
14	Perform function test.	See Owner's Manual.
