Retrofit CD Drive In Glove Compartment - AZ82.64-P-0002-03LWR

Model 213.088/089/288/289

with code 460 (Canada version)

Model 213.088/089/288/289

with code 494 (US version)

Model 238.3

with code 460 (Canada version)

Model 238.3

with code 494 (US version)

Model 238.4

Model 257

with code 460 (Canada version)

Model 257

with code 494 (US version)

Model 290

with code 460 (Canada version)

Model 290

with code 494 (US version)

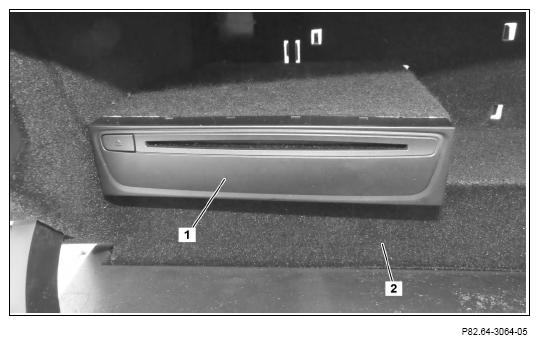

1. Place the CD drive (1) in the glove compartment (2).
2. Engage the contact of the CD drive wiring harness coupling (1).
3. Secure the CD drive (1) to the glove compartment (2) using two screws.
