Make Cutout In Glove Compartment Housing - AZ82.64-P-0002-11LWP

Model 213.088/089/288/289

with code 460 (Canada version)

Model 213.088/089/288/289

with code 494 (US version)

Model 238.3

with code 460 (Canada version)

Model 238.3

with code 494 (US version)

Model 238.4

Model 257

with code 460 (Canada version)

Model 257

with code 494 (US version)

Model 290

with code 460 (Canada version)

Model 290

with code 494 (US version)

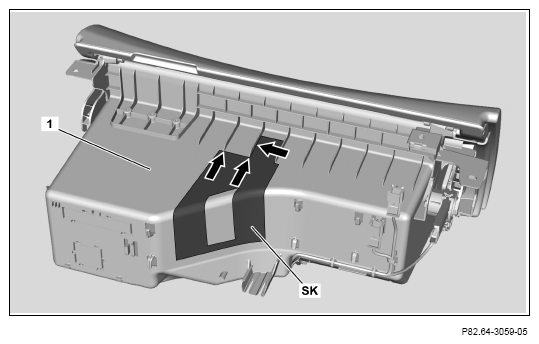

1. Position the cutting template (SK) on the bottom of the glove compartment (1) at the edges (arrows) and mark the area you would like to process.

   Ensure that the cutting template (SK) has been correctly aligned.

2. Cut out the area using a suitable tool.
3. Deburr the edges on the cutout.
4. Remove chips.

Courtesy of MERCEDES-BENZ USA
