Remove/install inserted rear axle shaft - AR35.30-P-0621MTA
MODEL 117, 156, 176, 246 with CODE M005 (4MATIC)
| Notes on repair work on suspension components | AH00.00-P-0100-01A | ||
| Remove/install | |||
| 1 | Use corresponding steering knuckle | AR35.20-P-0115NKB | |

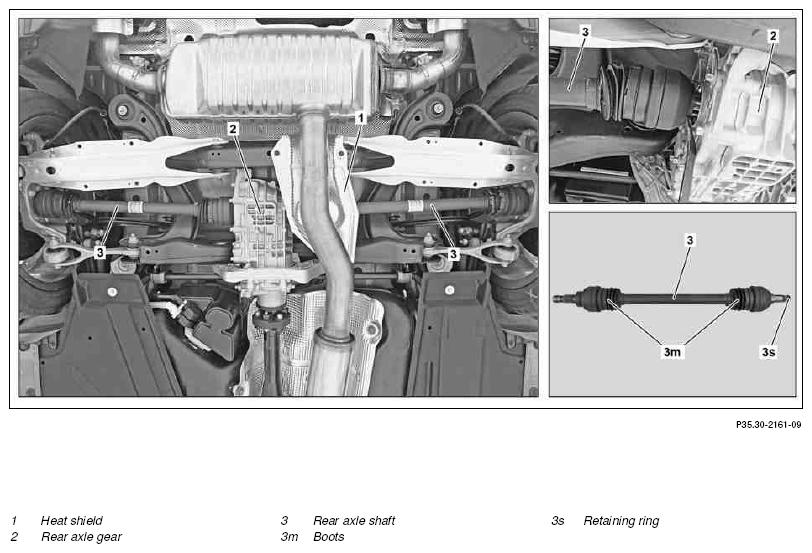

| 2 | Remove heat shield (1) under rear axle differential (2) | When removing right rear axle shaft (3). | |
| 3 | Lever rear axle shaft (3) out of rear axle differential (2) and remove | ||
| 4 | Check constant velocity joints and boots (3m) of rear axle shaft (3) | If the outer constant velocity joint is defective, the rear axle shaft (3) must be replaced. If boot (3m) is damaged or leaking or if inner constant velocity joint is defective:↓ Replace constant velocity joint or boot (3m) of rear axle shaft (3). |
|
| AR35.30-P-0662MTA | |||
| 5 | Replace retaining ring (3s) from inner splined profile | ||
| 6 | Check radial shaft sealing ring on side of rear axle differential (2) | If damaged or leaking: ↓ Replace side radial shaft sealing ring. |
|
| AR35.31-P-0545MTA | |||
| 7 | Install in the reverse order | ||
| Check | |||
| 8 | Check oil level in rear axle differential (2) | MODEL 117, 156, 176, 246 with CODE M005 (4MATIC) | |
| MODEL 117.302/305/346/347/352, 156.902/905/946/952, 176.002/005/046/047/052 with CODE M005 (4MATIC) | AP35.00-P-3501A | ||
| 9 | Check rear axle differential (2) for leaktightness |
