Remove/install bearing for rear axle differential suspension in rear axle carrier - AR35.10-P-0056MTA

MODEL 117, 156, 176, 246 with CODE M005 (4MATIC)

Shown on MODEL 176.052

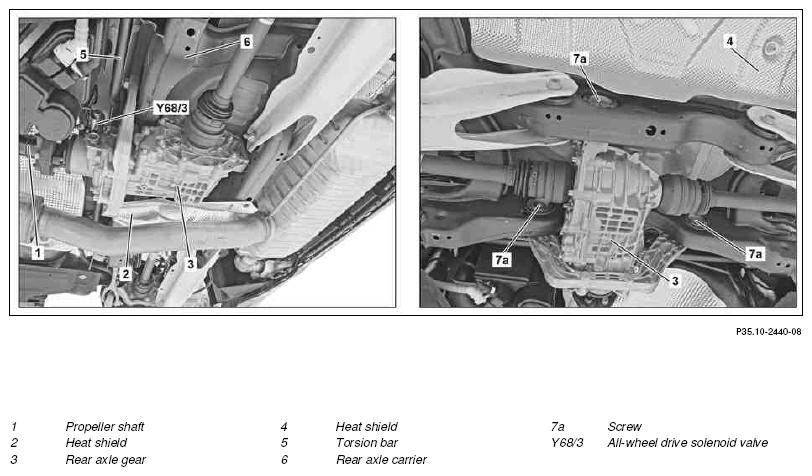

Fig 1: Rear Axle Differential Suspension Bearing Remove/Install Components (1 Of 2)

Courtesy of MERCEDES-BENZ USA

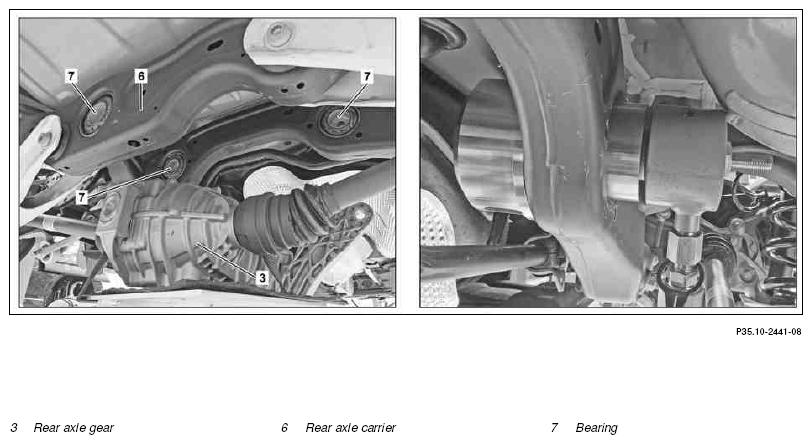

Fig 2: Rear Axle Differential Suspension Bearing Remove/Install Components (2 Of 2)

Courtesy of MERCEDES-BENZ USA

	Notes on repair work on suspension components		AH00.00-P-0100-01A
	Remove/install
1	Secure vehicle on vehicle lift		AR00.60-P-0100CW
2	Remove propeller shaft (1)		AR41.10-P-0050MTA
3	Remove heat shield (2) under rear axle differential (3)
4	Remove heat shield (4) over rear muffler
5	Release and disconnect electrical connection from all-wheel drive solenoid valve (Y68/3) and unclip feed line at retaining plate		AR35.31-P-0600MTA
6	Detach stabilizer bar (5) from rear axle carrier (6)	When removing left or right front bearing (7).
			AR32.20-P-0315NKB
7	Support rear axle differential (3) and lash down securely
	000 588 11 62 00 Major assembly mount		WS01.00-P-0092B
	000 588 10 62 00 Support plate		WS26.00-P-3309B
8	Remove screws/bolts (7a)
	Notes on self-locking nuts and bolts		AH00.00-N-0001-01A
		Screw/bolt, carrier for differential/differential to rear axle carrier	*BA35.31-P-1002-02J
9	Lower rear axle differential (3) carefully
10	Press out corresponding bearing (7) from rear axle carrier (6)	Remove/install bearing for rear axle differential suspension in rear axle carrier at rear	AR35.10-P-0056-04MTA
		Remove/install bearing for rear axle differential suspension in rear axle carrier at left front	AR35.10-P-0056-02MTA
		Remove/install bearing for rear axle differential suspension in rear axle carrier at right front	AR35.10-P-0056-01MTA
		Mobil Vacuoline 137 insertion agent, 0.5 l	*BR00.45-Z-1097-06A
		Hydraulic hose (complete)	Figure
		Hand pump	Figure
		Hollow piston cylinder	Fig 6
		Extraction and insertion tool	Fig 3
11	Install in the reverse order

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 117	Model 156
BA35.31-P-1002-02J	Screw/bolt, carrier for differential/differential to rear axle carrier	Nm	150	150

REAR AXLE DIFFERENTIAL HOUSING

Number	Designation		Model 176	Model 246
BA35.31-P-1002-02J	Screw/bolt, carrier for differential/differential to rear axle carrier	Nm	150	150

Fig 3: Extraction And Insertion Tool (176 589 00 43 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Hydraulic Hose (Complete) (652 589 00 33 23)

Courtesy of MERCEDES-BENZ USA

Fig 5: Hand Pump (652 589 00 33 21)

Courtesy of MERCEDES-BENZ USA

Fig 6: Hollow Piston Cylinder (001 589 51 33 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1097-06A	Mobil Vacuoline 137 insertion agent, 0.5 l	A 000 989 18 60 09
