Remove/install crank window in front door - AR72.10-P-1900NKC

MODEL 117

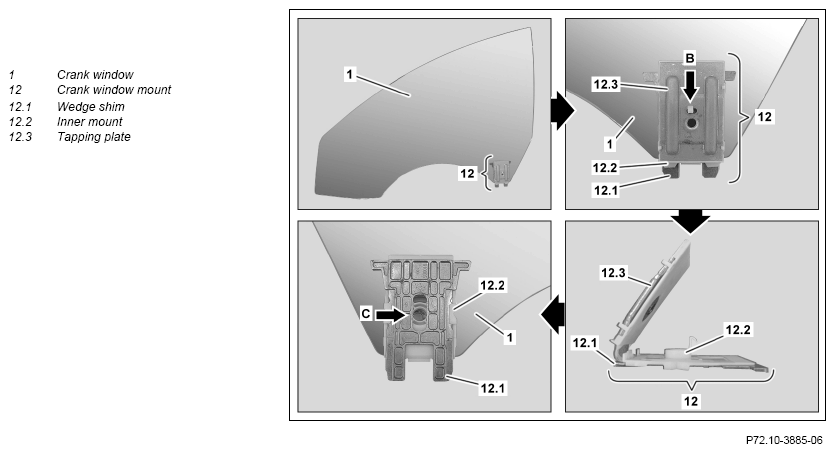

Fig 1: Crank Window In Front Door Remove/Install Components (1 Of 3)

Courtesy of MERCEDES-BENZ USA

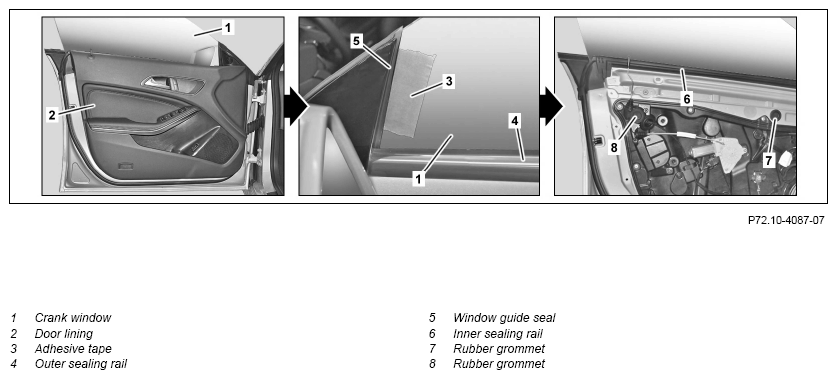

Fig 2: Crank Window In Front Door Remove/Install Components (2 Of 3)

Courtesy of MERCEDES-BENZ USA

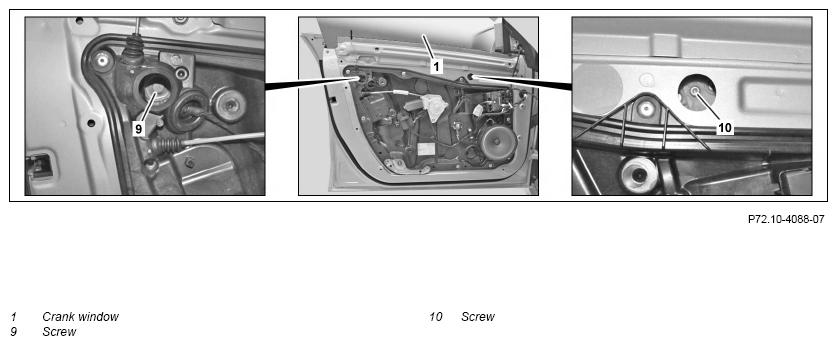

Fig 3: Crank Window In Front Door Remove/Install Components (3 Of 3)

Courtesy of MERCEDES-BENZ USA

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove
1	Remove outer sealing rail (4)		AR72.10-P-1700NKC
2	Roll up crank window (1) completely
3	Remove door lining (2)		AR72.10-P-1000NKC
4	Glue on adhesive tape (3), as shown, parallel to window guide rail (5) on crank window (1)	Only when reinstalling old crank window (1). Adhesive tape (3) serves as installation aid for faster adjustment of crank window (1).
5	Remove inner sealing rail (6)	Carefully lift inner sealing rail (6) out of bead on inner door panel. Otherwise the inner sealing rail (6) can bend and must be replaced.
		Mounting wedge	Figure
6	Remove rubber grommets (7, 8)
7	Remove bolt (9)
8	Loosen bolt (10) until crank window (1) can be removed from front door	Do not unscrew bolt (10) completely.
9	Remove crank window (1) from front door	Carefully remove crank window (1) from front door. Otherwise the paint can be damaged.
10	Place crank window (1) down on suitable base
11	Unlock catch hook (B) and remove crank window mount (12) from crank window (1)	When replacing crank window (1).
	Install
12	Install crank window mount (12) on crank window (1)	When replacing crank window (1). The wedge shim (12.1) on the crank window mount (12) must be centered in relation to the mount (12.2) (arrow C). Ensure that the tapping plate (12.3) is seated correctly in the inner mount (12.2).
13	Install crank window (1) in front door and insert into mounts of power window	Carefully insert crank window (1) into front door. Otherwise the paint can be damaged.
14	Push crank window (1) toward front until adhesive tape (3) makes contact parallel to window guide seal (5)	Only when reinstalling old crank window (1).
15	Tighten bolts (9, 10) to stop finger-tight	Tighten bolts (9, 10) after basic setting of crank window (1).
16	Moisten rubber element on inner sealing rail (6) with lubricant	Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
17	Move inner sealing rail (6) behind crank window (1), position flush with window guide seal (5) and install on bead of inner door panel	Ensure that rear shaped parts of inner sealing rail (6) is seated correctly in inner door panel. Assemble front shaped part of inner sealing rail (6) when installing outer sealing rail (4) on inner door panel.
18	Adjust crank window (1), correct if required		AR72.10-P-1960NKC
19	Remove adhesive tape (3)	Only when reinstalling old crank window (1).
20	Install outer sealing rail (4)		AR72.10-P-1700NKC
		When installing outer sealing rail (4), it is not necessary to lower the crank window (1).
21	Install rubber grommets (7, 8)
22	Install door lining (2)		AR72.10-P-1000NKC

Fig 4: Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
