Remove/install sealing rail on outside - AR72.10-P-1700NKC

MODEL 117

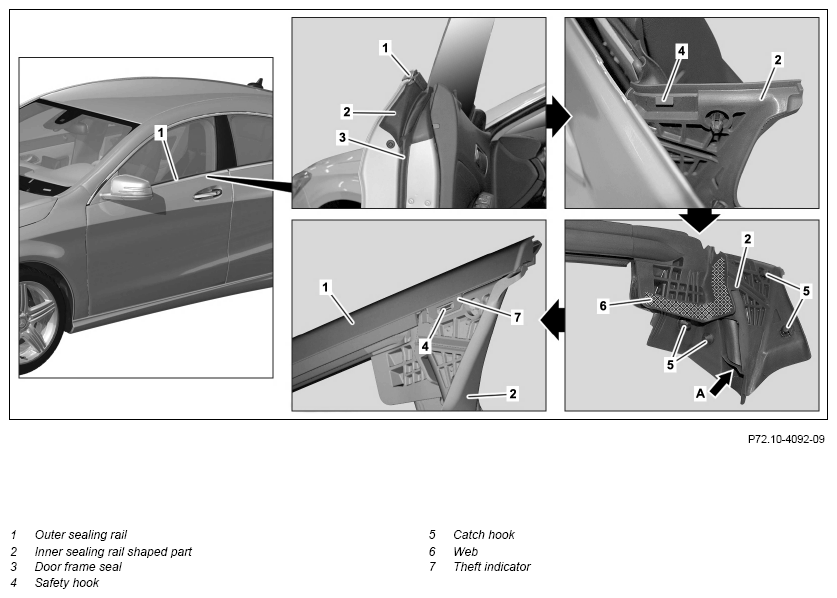

Fig 1: Sealing Rail On Outside Remove/Install Components

Courtesy of MERCEDES-BENZ USA

	Remove
1	Open front door
2	Completely lower crank window
3	Unclip inner sealing rail shaped part (2) from inner door panel until retaining hook (4) exposes the theft indicator (7)
4	Secure inner sealing rail shaped part (2) with assembly wedge against folding back	Ensure that retaining hook (4) does not engage in theft indicator (7) when removing outer sealing rail (1) Otherwise the theft indicator (7) can be damaged and the outer sealing rail (1) must be replaced.
		Mounting wedge	Figure
5	Lift outer sealing rail (1) out of bead on door paneling with assembly wedge and pull out below outside mirror base	Carefully lift outer sealing rail (1) out of bead on door paneling Otherwise the outer sealing rail (1) can bend and must be replaced.
		Mounting wedge	Figure
	Install
6	Moisten rubber strip on outer sealing rail (1) with lubricant	Lubricant, rubber assembly 1 l	*BR00.45-Z-1010-06A
7	Install outer sealing rail (1) in area of outside mirror on bead of door paneling and push below outside mirror base.	Carefully push outer sealing rail (1) below outside mirror base Otherwise the paint can be damaged.
8	Lower outer sealing rail (1) and install on bead of door paneling
9	If required adapter outer sealing rail (1) by moving door paneling	The outer sealing rail (1) must be flush with the edge of the rear door paneling.
10	Clip inner sealing rail shaped part (2) into inner door panel	Ensure that stay (6) and catch hook (5) are seated correctly on inner door panel, simultaneously ensure that the retaining hook (4) is seated correctly in the theft indicator (7).
11	Position door sealing frame (3) in inner sealing rail shaped part (2)	Ensure that door frame seal (3) is seated correctly in cutout (arrow A) of inner sealing rail shaped part (2).
12	Completely roll up crank window
13	Close front door

Fig 2: Mounting Wedge (110 589 03 59 00)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1010-06A	Lubricant, rubber assembly 1 l	A 000 989 03 67
