Adjust front door side window - AR72.10-P-1960NKC
MODEL 117

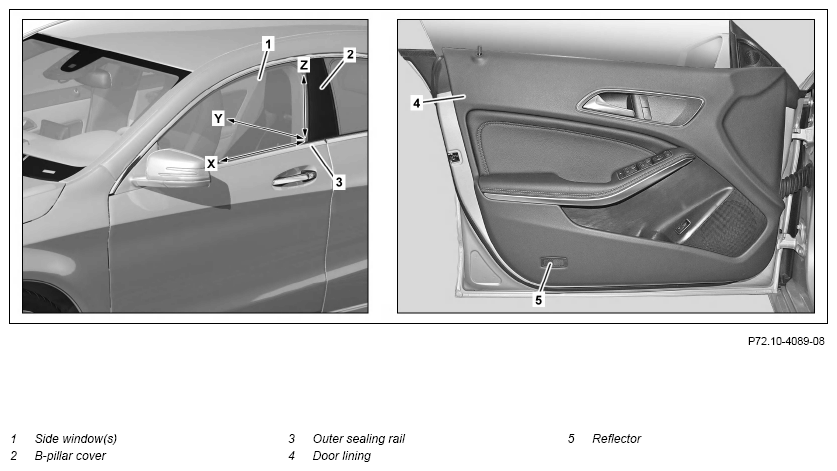

Shown on left side of vehicle
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Check front door | |||
| 1 | Check gaps on front door, adjust if necessary | AR72.10-P-0550NKC | |
| Check side window (1) in X-direction | |||
| 2 | Check gap dimension between side window (1) and B-pillar cover (2) | AR72.10-P-1950-02NKC | |
| Model 117.3 Gap dimension | *BE60.00-P-1009-01ZA | ||
| Figure | |||
| Check side window (1) in Y-direction | |||
| 3 | Check tension of side window (1) | AR72.10-P-1950-03NKC | |
| Dimension "g" between window outer surface to B-pillar cover | *BE72.10-P-1002-01D | ||
| Check side window (1) in Z-direction | |||
| 4 | Check insertion depth of side window (1) in retaining rail | AR72.10-P-1950-05NKC | |
| Model 117.3 Gap dimension | *BE60.00-P-1009-01ZA | ||
| Figure | |||
| Remove | |||
| 5 | Switch on ignition and store transmitter key outside of transmission range (min. 2 m) | ||
| 6 | Remove reflector (5) | To adjust outer surface of side window (1) in relation to B-pillar cover (2), "Tension at top", "Y-direction". | |
| Fig 4 | |||
| 7 | Remove door lining (4) | To adjust outer surface of side window (1) in relation to B-pillar cover (2), "Tension at bottom", "Y-direction" and after adjusting gap dimension of side window (1) in relation to B-pillar cover (2), "X-direction". | |
| AR72.10-P-1000NKC | |||
| 8 | Remove outer sealing rail (3) | To adjust insertion depth of side window (1) in retaining rail, "Z-direction". | |
| AR72.10-P-1700NKC | |||
| Check side window (1) in X-direction | |||
| 9 | Check gap dimension between side window (1) and B-pillar cover (2) | AR72.10-P-1950-02NKC | |
| *BA72.10-P-1008-01U | |||
| *BA72.10-P-1007-01U | |||
| Model 117.3 Gap dimension | *BE60.00-P-1009-01ZA | ||
After adjusting side window (1) in "X-direction", check adjusting in "Z-direction", adjust if necessary. ↓ Height adjustment of front window |
Figure | ||
| AR72.10-P-1950-05NKC | |||
| Adjust side window (1) in Y-direction | |||
| 10 | Check tension of side window (1) | AR72.10-P-1950-03NKC | |
| Dimension "g" between window outer surface to B-pillar cover | *BE72.10-P-1002-01D | ||
| Figure | |||
| Figure | |||
| Adjust side window (1) in Z-direction | |||
| 11 | Check insertion depth of side window (1) in retaining rail | AR72.10-P-1950-05NKC | |
| Model 117.3 Gap dimension | *BE60.00-P-1009-01ZA | ||
| Figure | |||
| Install | |||
| 12 | Install outer sealing rail (3) | After adjusting insertion depth of side window (1) in retaining rail, "Z-direction". | |
| AR72.10-P-1700NKC | |||
| 13 | Install door lining (4) | After adjusting outer surface of side window (1) in relation to B-pillar cover (2), "Y-direction" and after adjusting gap dimension of side window (1) in relation to B-pillar cover (2), "X-direction". | |
| AR72.10-P-1000NKC | |||
| 14 | Install reflector (5) | After adjusting outer surface of side window (1) in relation to B-pillar cover (2), "Tension at top", "Y-direction". | |
| Normalizing | |||
| 15 | Normalizing power windows | ||
| Clean | |||
| 16 | Clean side window (1) |
TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS
| Number | Designation | Model 117.3 | |||
|---|---|---|---|---|---|
| BE60.00-P-1009-01ZA | Gap dimension | B-pillar cover to front window | Dimension "W" | mm | 10, 0 (± 1, 0) |
| For picture, see | AR60.00-P-0700-01NKC | ||||
TEST AND ADJUSTMENT VALUES FOR FRONT DOOR
| Number | Designation | Model 117 | |
|---|---|---|---|
| BE72.10-P-1002-01D | Dimension "g" between window outer surface to B-pillar cover | mm | 0, 0 (-0, 5/+1, 0) |
FRONT DOOR
| Number | Designation | Model 117 | |
|---|---|---|---|
| BA72.10-P-1007-01U | Screw/bolt, window to front power window | Nm | 6 |
FRONT DOOR
| Number | Designation | Model 117 | |
|---|---|---|---|
| BA72.10-P-1008-01U | Screw/bolt, window to rear power window | Nm | 9 |
