Adjust crank window on rear door - AR72.12-P-1950NKC

MODEL 117

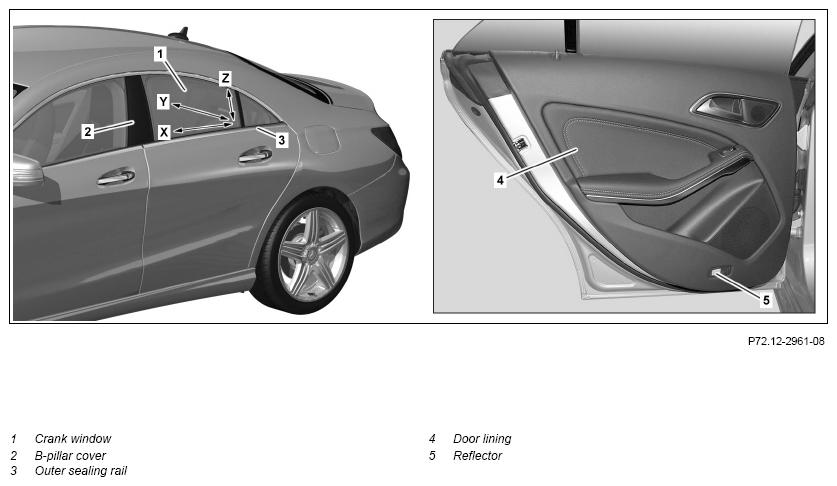

Fig 1: Crank Window, Door Lining, B-Pillar Cover, Reflector And Outer Sealing Rail

Courtesy of MERCEDES-BENZ USA

	Check rear door
1	Check gaps on rear door, adjust if necessary		AR72.12-P-0650NKC
	Check crank window (1) in X-direction
2	Check gap dimension between crank window (1) and B-pillar cover (2)		AR72.12-P-1950-03NKC
		Model 117.3 Gap dimension	*BE60.00-P-1010-01ZA
		Feeler gauge	Figure
	Check crank window (1) in Y-direction
3	Check tension of crank window (1)		AR72.12-P-1950-02NKC
		Dimension "h" between window outer surface and B-pillar covering	*BE72.12-P-1003-01F
	Check crank window (1) in Z-direction
4	Ensure that crank window (1) is inserted correctly in retaining rail		AR72.12-P-1950-01NKC
		Model 117.3 Gap dimension	*BE60.00-P-1010-01ZA
		Feeler gauge	Figure
	Remove
5	Remove reflector (5)	To adjust outer surface of crank window (1) in relation to B-pillar cover (2), "Tension at top", "Y-direction".
		Clip remover	Figure
6	Remove door lining (4)	To adjust outer surface of crank window (1) in relation to B-pillar cover (2), "Tension at bottom", "Y-direction" and after adjusting gap dimension of crank window (1) in relation to B-pillar cover (2), "X-direction".
7	Remove outer sealing rail (3)	To adjust insertion depth of crank window (1) in retaining rail, "Z-direction".
			AR72.12-P-1017NKC
	Check crank window (1) in X-direction
8	Check gap dimension between crank window (1) and B-pillar cover (2)		AR72.12-P-1950-03NKC
		Bolt, window to rear power window	*BA72.12-P-1007-01P
		Bolt, window to front power window	*BA72.12-P-1009-01P
		Model 117.3 Gap dimension	*BE60.00-P-1010-01ZA
		Feeler gauge After adjusting crank window (1) in X-direction, check adjusting in Z-direction, adjust if necessary. ↓ Height adjustment for rear window	Figure
			AR72.12-P-1950-01NKC
	Adjust crank window (1) in Y-direction
9	Adjust tension of crank window (1)		AR72.12-P-1950-02NKC
		Dimension "h" between window outer surface and B-pillar covering	*BE72.12-P-1003-01F
		Socket wrench	Figure
		Socket	Figure
	Adjust crank window (1) in Z-direction
10	Adjust insertion depth of crank window (1) in retaining rail		AR72.12-P-1950-01NKC
		Model 117.3 Gap dimension	*BE60.00-P-1010-01ZA
		Feeler gauge	Figure
	Install
11	Install outer sealing rail (3)	After adjusting insertion depth of crank window (1) in retaining rail, "Z-direction".
			AR72.12-P-1017NKC
12	Install door lining (4)	After adjusting outer surface of crank window (1) in relation to B-pillar cover (2), "Y-direction" and after adjusting gap dimension of crank window (1) in relation to B-pillar cover (2), "X-direction".
13	Install reflector (5)	After adjusting outer surface of crank window (1) in relation to B-pillar cover (2), "Tension at top", "Y-direction".
14	Normalizing power windows
15	Clean crank window (1)	Cleaner, plastic windows, fabric top 500 ml	*BR00.45-Z-1007-04A

TEST AND ADJUSTMENT VALUES FOR GAP DIMENSIONS

Number	Designation				Model 117.3
BE60.00-P-1010-01ZA	Gap dimension	B-pillar cover to rear window	Dimension "X"	mm	10, 0 (±1, 0)
			For picture, see		AR60.00-P-0700-01NKC

TEST AND ADJUSTMENT VALUES FOR REAR DOOR

Number	Designation		Model 117
BE72.12-P-1003-01F	Dimension "h" between window outer surface and B-pillar covering	mm	0, 0 (+0, 5/-1, 0)

REAR DOOR

Number	Designation		Model 117
BA72.12-P-1007-01P	Bolt, window to rear power window	Nm	6

REAR DOOR

Number	Designation		Model 117
BA72.12-P-1009-01P	Bolt, window to front power window	Nm	9

Fig 2: Socket Wrench (209 589 00 09 00)

Courtesy of MERCEDES-BENZ USA

Fig 3: Feeler Gauge (129 589 03 21 00)

Courtesy of MERCEDES-BENZ USA

Fig 4: Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA

Fig 5: Socket (209 589 00 09 03)

Courtesy of MERCEDES-BENZ USA

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1007-04A	Cleaner, plastic windows, fabric top 500 ml	A 001 986 38 71
