Remove/install sealing rail on rear door - AR72.12-P-1017NKC
MODEL 117
| Risk of injury caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof. | No parts of the body or limbs should be within the operating area when the components are moving. | AS00.00-Z-0011-01A | |
| Remove | |||
| 1 | Open rear door | ||
| 2 | Completely lower crank window | ||

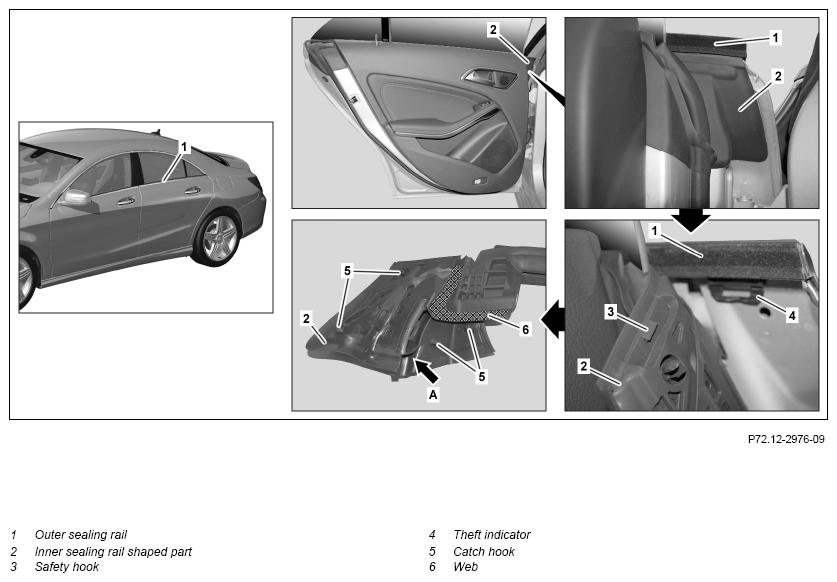

| 3 | Unclip inner sealing rail shaped part (2) from inner door panel until retaining hook (3) exposes the theft indicator (4) | ||
| 4 | Secure inner sealing rail shaped part (2) with assembly wedge against folding back | Ensure that retaining hook (3) does not engage in theft indicator (4) when removing outer sealing rail (1) Otherwise the theft indicator (4) can be damaged and the outer sealing rail (1) must be replaced. |
|
| Figure | |||
| 5 | Carefully lift outer sealing rail (1) out of bead on door paneling with assembly wedge | Carefully lift outer sealing rail (1) out of bead on door paneling Otherwise the outer sealing rail (1) can bend and must be replaced. |
|
| Figure | |||
| 6 | Moisten rubber strip on outer sealing rail (1) with lubricant | Lubricant, rubber assembly 1 l | *BR00.45-Z-1010-06A |
| 7 | Install outer sealing rail (1) on bead of door paneling | ||
| 8 | If required adapter outer sealing rail (1) by moving door paneling | ||
| 9 | Clip inner sealing rail shaped part (2) into inner door panel | ||
| 10 | Position door frame seal in inner sealing rail shaped part (2) | ||
| 11 | Close rear door |
REPAIR MATERIALS
| Number | Designation | Order number |
|---|---|---|
| BR00.45-Z-1010-06A | Lubricant, rubber assembly 1 l | A 000 989 03 67 |
