Remove/Install Outer Trim On Seat Frame - AR91.10-P-1201CLW
Model 205.3/4
with code 555 (AMG-Performance Seat)
with code U22 (Lumbar Support Adjustment)
with code P65 (Seat Comfort Package)
Model 238
with code P65 (Seat Comfort Package)
with code U22 (Lumbar Support Adjustment)
MODIFICATION NOTES
| 24.07.2019 | WIS Service Media added in operation step 2 and 5. |

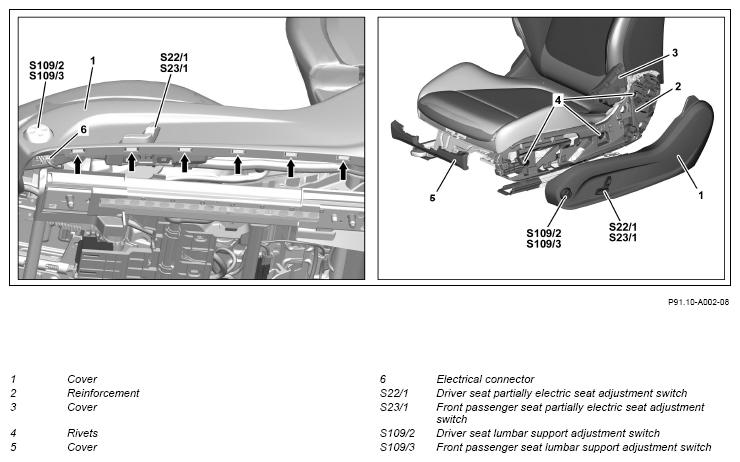

Fig 1: Outer Trim/Cover On Seat Frame Components Location - Model 205.3/4 With Codes 555, U22, P65; Shown With Code P65 (Seat Comfort Package)
Shown with code P65 (Seat Comfort Package)
| Topical note | Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | |
| Notes on safety-relevant components | AH00.00-Z-0019-01A | ||
| Remove/Install | |||
| 1 | Remove front seat. | Model 205.3 with code 555 (AMG-Performance Seat) with code U22 (Lumbar Support Adjustment) with code P65 (Seat Comfort Package) with code U22 (Lumbar Support Adjustment) Model 238 with code P65 (Seat Comfort Package) with code U22 (Lumbar Support Adjustment) |
AR91.10-P-1000LW |
| Model 205.4 with code 555 (AMG-Performance Seat) with code U22 (Lumbar Support Adjustment) Model 205.4 with code P65 (Seat Comfort Package) with code U22 (Lumbar Support Adjustment) |
AR91.10-P-1000LWR | ||
| 2 | Unclip trim (5) at top and remove downwards. | If installed. WIS Service Media multimedia:A supplement to the article is available. Long wedge |
Fig 2 |
| 3 | Disconnect electrical connector from Lumbar Support Adjustment switch (S109/2, S109/3). | ||
| 4 | Push trim (1) downwards and unhook from catch hooks (arrows). | ||
| 5 | Remove trim (1) and place with attached electric line to one side. | WIS Service Media Operation steps 5 to 12 are shown here: multimedia:A supplement to the article is available.
|
|
| 6 | Disconnect partially electric seat adjustment electrical connector from switch (S22/1, S23/1). | ||
| 7 | Remove partially electric seat adjustment switch (S22/1, S23/1). | When replacing trim (1). Model 205.3/4 with code 555 (AMG-Performance Seat) with code U22 (Lumbar Support Adjustment) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) Model 205.3/4 with code P65 (Seat Comfort Package) with code U22 (Lumbar Support Adjustment) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Driver Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) Model 238 with code P65 (Seat Comfort Package) with code U22 (Lumbar Support Adjustment) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) |
AR91.29-P-2523LWA |
| 8 | Remove Lumbar Support Adjustment switch (S109/2, S109/3). | When replacing trim (1). | AR91.25-P-1436LWE |
| 9 | Remove cover (3). | ||
| 10 | Unhook electrical wiring harness from reinforcement (2) and place to one side. | Observe installation position of electrical wiring harness. |
|
| 11 | Drill out rivets (4). | Replace rivets (4). |
|
| 12 | Release and remove reinforcement (2). | ||
| 13 | Install in the reverse order |
