Remove/Install Front Seat Adjustment Switch - AR91.29-P-2523LWA

Model 205, 253, 293

except code 221 (Electrically Adjustable Left Driver Seat)

except code 222 (Electrically Adjustable Right Front Seat)

except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)

except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)

except code 275 (Driver's Seat, Electrically Adjustable With Memory Function)

Model 213

except code 221 (Electrically Adjustable Left Driver Seat)

except code 222 (Electrically Adjustable Right Front Seat)

except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror))

Model 238

except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left)

except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function)

except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror))

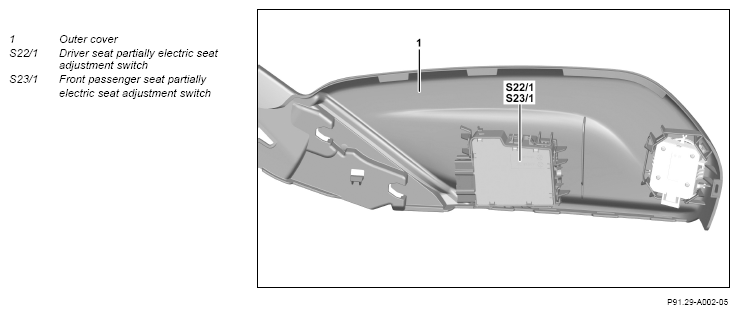

Fig 1: Front Seat Adjustment Switch Components Location - Model 205 Except Codes 221, 222, 241, 242, 275

Courtesy of MERCEDES-BENZ USA

	Remove/Install
1	Remove outer trim (1) from seat frame.	Model 205.0/1/2, 253, 293 with code P65 (Seat Comfort Package) with code U22 (Lumbar Support Adjustment) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Front Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) Model 205.0/1/2, 253 with code 555 (AMG Performance Seats) with code U22 (Lumbar Support Adjustment) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Front Seat) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Driver's Seat, Electrically Adjustable With Memory Function) Model 213 with code 555 (AMG Performance Seats) with code U22 (Lumbar Support Adjustment) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Front Seat) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror)) except code P65 (Seat Comfort Package) Model 213 with code P65 (Seat Comfort Package) with code U22 (Lumbar Support Adjustment) except code 221 (Electrically Adjustable Left Driver Seat) except code 222 (Electrically Adjustable Right Front Seat) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror))	AR91.10-P-1201LWA
		Model 238 with code P65 (Seat Comfort Package) with code U22 (Lumbar Support Adjustment) except code 241 (Memory Switch For Electrically Adjustable Front Passenger Seat, Left) except code 242 (Front Passenger Seat, Electrically Adjustable With Memory Function) except code 275 (Memory Package (Driver's Seat, Steering Column And Mirror))	AR91.10-P-1201CLW
2	Release partially electric seat adjustment switch (S22/1, S23/1) and remove.
3	Install in the reverse order.
