Remove/Install Rear Head Restraint - AR91.16-P-1770LWX

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 238.3

MODEL 253.3

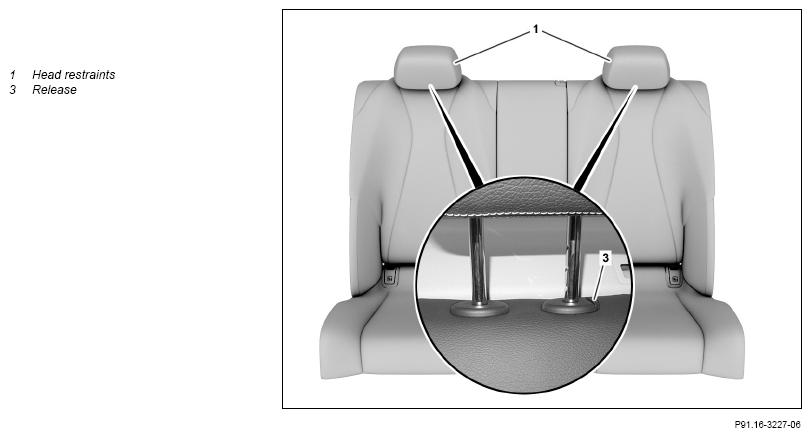

Shown on model 238.3

Fig 1: Rear Head Restraint Components Location - Model 253.3 (Shown On Model 238.3)

Courtesy of MERCEDES-BENZ USA

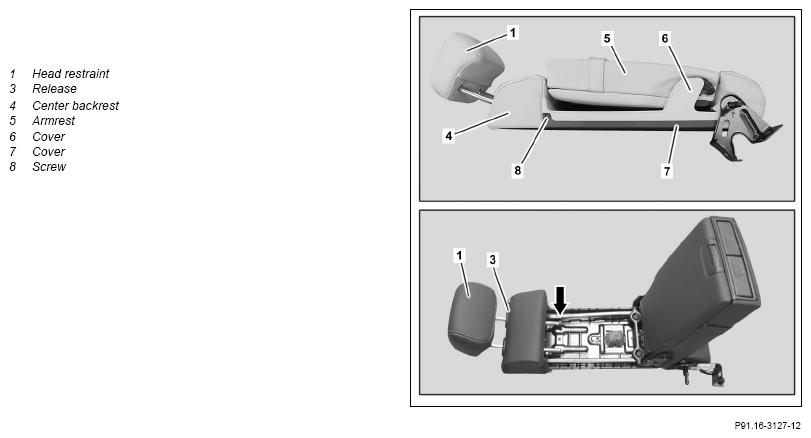

Shown on center head restraint (1), model 253.3

Fig 2: Rear Center Head Restraint Components Location - Model 253.3

Courtesy of MERCEDES-BENZ USA

	Remove/install
1	Remove pivot bearing of left or right seat backrest with rear passenger compartment seat backrest inclination switch.	When removing the outer head restraint (1).
			AR91.29-P-1772LW
2	Remove retaining clip of head restraint (1) in rear passenger compartment.	When removing the outer head restraint (1).
		Model 238.3	AR91.16-P-1770-03LWO
		Model 253.3	AR91.16-P-1770-03LWX
		Dismantling tool	Fig 3
3	Remove trim (6) behind armrest (5).	Model 253.3 When removing center head restraint (1).
			AR91.12-P-1745LW
4	Remove retaining clip (arrow) of head restraint (1).	Model 253.3 When removing center head restraint (1).
5	Operate release (3) and pull head restraint (1) out of head restraint guides.
6	Install in the reverse order.

Fig 3: Identifying Dismantling Tool (205 589 02 63 00)

Courtesy of MERCEDES-BENZ USA
