Remove/Install Retaining Clip For Head Restraint In Rear Passenger Compartment - AR91.16-P-1770-03LWX

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

MODEL 253.3

Fig 1: Identifying Dismantling Tool (205 589 02 63 00)

Courtesy of MERCEDES-BENZ USA

Remove/install

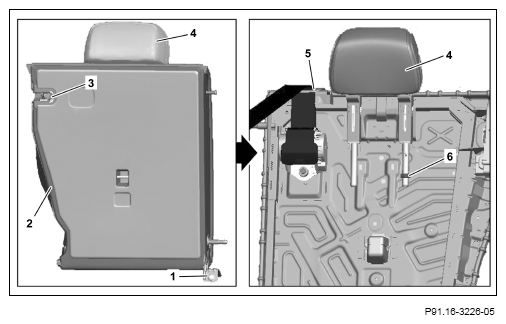

Remove pivot bearing (1) from bearing pin.
Do not tilt pivot bearing (1). Otherwise, the spacer ring may be damaged.
Unclip the cover (3).
Unclip the cover (5).
Do not remove cover (5) from seat belt.

Courtesy of MERCEDES-BENZ USA
Unhook cover (2) all the way round using the dismantling tool from the seat backrest frame.
Hook in cover (2) starting at the corners. Press on cover (2) again after fully hooking it in.
Lift off cover (2) with padding far enough from seat backrest frame until the retaining clip (6) can be removed from the head restraint (4).
Remove retaining clip (6).
Observe installation position and ensure retaining clip (6) latches fully into place.
Install in the reverse order.
