Detach/Attach External Plate Carrier B08 On Torque Converter Housing - AR27.50-P-0617EWM
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Transmission 725.0 (except 725.007/017/037/047), 725.103

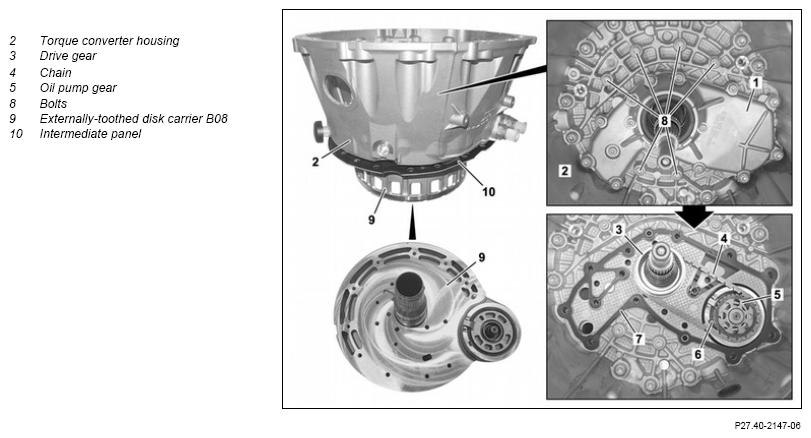

Fig 1: External Plate Carrier B08 Components Location - Transmission 725.0 (Except 725.007/017/037/047)
| Risk of injury to skin and eyes due to handling of transmission oil. Health risk caused by swallowing transmission oil | Wear protective gloves, protective clothing and safety glasses. Do not pour transmission oil into beverage bottles. |
AS00.40-Z-0001-01A | |
| Notes on automatic transmission | AH27.19-P-0001-01NKB | ||
| Remove | |||
| 1 | Remove planetary gear set 1 with multidisk clutch K81 and multidisk brake B08 | AR27.50-P-0625EWM | |
| 2 | Remove drive gear (3), chain (4) and oil pump gear (5) | AR27.10-P-0400EWM | |
| 3 | Loosen screws/bolts (8) | Otherwise the outer plate carrier B08 (9) will fall down when it is pressed out; this will cause damage. |
|

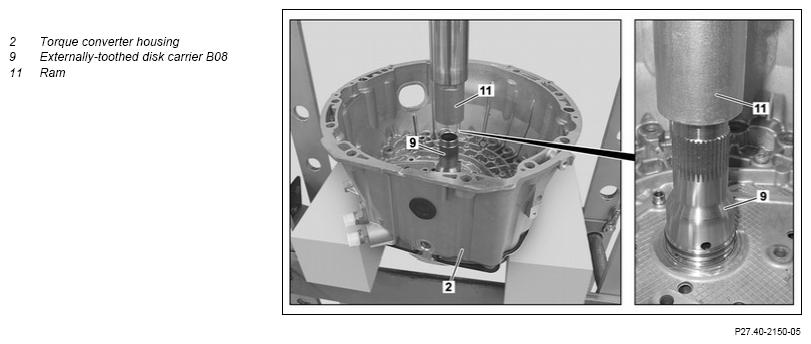

| 4 | Press external plate carrier B08 (9) out of torque converter housing (2) | Otherwise, the external plate carrier B08 (9) and the bolts (8) may be damaged when pressing out. Otherwise the outer plate carrier B08 (9) will be damaged. Workshop press |
|
| 5 | Remove bolts (8) and remove external plate carrier B08 (9) | ||
| 6 | Remove intermediate panel (10) | ||
| Install | |||
| 7 | Check intermediate panel (10) for damage and replace if necessary | ||
| 8 | Position intermediate panel (10) on external plate carrier B08 (9) | ||
| 9 | Position external plate carrier B08 (9) and intermediate panel (10) onto torque converter housing (2) | ||
| 10 | Press external plate carrier B08 (9) into torque converter housing (2) | Otherwise the outer plate carrier B08 (9) will be damaged. Workshop press |
|
| 11 | Measure and adjust clearance of multidisk brake B08 | When replacing the outer plate carrier B08 (9). | |
| AR27.51-P-7230-02EWM | |||
| Clearance in multidisk brake B08 | *BE27.51-P-1003-01E | ||
| Fig 2 | |||
| Fig 5 | |||
| Fig 4 | |||
| Fig 3 | |||
| 12 | Fully tighten bolts (8) | *BA27.10-P-1003-04H | |
| 13 | Slide-on drive gear (3), chain (4) and oil pump gear (5) together | Otherwise, mounting problems may occur. |
AR27.10-P-0400EWM |
| 14 | Install planetary gear set 1 with multidisk clutch K81 and multidisk brake B08 | AR27.50-P-0625EWM |
ADJUSTMENT VALUES FOR MULTIDISK CLUTCH/MULTIDISK BRAKE
| Number | Designation | Transmission 725.0/1 | |||
|---|---|---|---|---|---|
| BE27.51-P-1003-01E | Clearance in multidisk brake B08 | Contact force for clearance adjustment | F1 | N | 600 |
| Number of internal plates | 3 | mm | 1, 6...1, 8 | ||
| 4 | mm | 1, 8...2, 0 | |||
AUTOMATIC TRANSMISSION COMPLETE
| Number | Designation | Transmission 725.0/1 | ||
|---|---|---|---|---|
| BA27.10-P-1003-04H | Screw/bolt, external plate carrier to torque converter housing/adapter housing | M6 | Nm | 10 |
