Remove/Install Hydraulic Valve Clearance Compensating Elements - AR05.00-P-2011MRA
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 274.9 in model 205
Engine 274.9 in model 253
| Remove/install | |||
| 1 | Remove camshafts | AR05.20-P-6992MRA | |
| 2 |

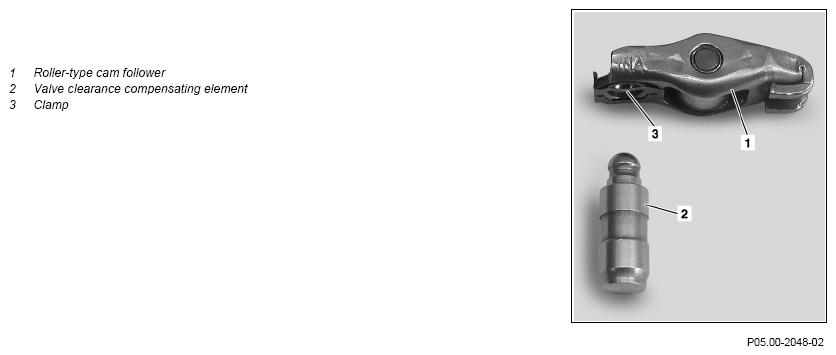

Take out roller cam follower (1) with valve clearance compensating element (2) | If necessary mark the roller cam follower (1) relative to the valve clearance compensating element (2). |
BB00.40-P-0223-02A |
| 3 | Remove the clamp (3) by hand and take off valve clearance compensating element (2) from roller cam follower (1) | ||
| Check | |||
| 4 | Check valve clearance compensating element (2) for proper operation and replace if necessary | Only push valve clearance compensating element (2) together by hand, do not use a steel tool. The surface of the valve clearance compensating element (2) can get damaged otherwise. If a number of valve clearance compensating element (2) are defective. ↓ Check compress oil supply of cylinder head. |
AR18.00-P-1250MRA |
| 5 | Install in the reverse order | ||
| Risk of accident from vehicle starting off by itself when engine running. Risk of injury (bruises and burns) resulting from working on the engine while it is being started or when it is running. | Secure vehicle to prevent it from starting off by itself. Wear buttoned-up and snug-fitting work clothes. Do not touch hot or rotating parts. | AS00.00-Z-0005-01A | |
| 6 | Perform an engine test run; in doing so check for leaktightness and for functionality | ||
| 7 | Install upper engine cover |
