Remove/Install Camshafts - AR05.20-P-6992MRI
WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.
Engine 264 in model 205, 253
MODIFICATION NOTES
| 15.08.2019 | Note AH00.00-P-0500-01MNE added. | Operation step 1 | |
| 15.08.2019 | Note AH05.20-P-1000-09SZ added. | Operation steps 4 and 6 |
| Risk of injury to skin and eyes due to handling of engine oil. Risk of poisoning caused by swallowing engine oil | Wear protective gloves, protective clothing and safety glasses. Do not fill engine oil into beverage containers. |
AS18.00-Z-0001-01A | |
| Risk of injury caused by scraping or cutting body parts on sharp vehicle parts | Always wear protective gloves when working on or near sharp and non-deburred vehicle parts. Deburr repair panels. |
AS00.00-Z-0017-01A | |
| Notes on avoiding damage through contamination and foreign objects | AH00.00-P-5000-01A | ||
| Remove/install | |||

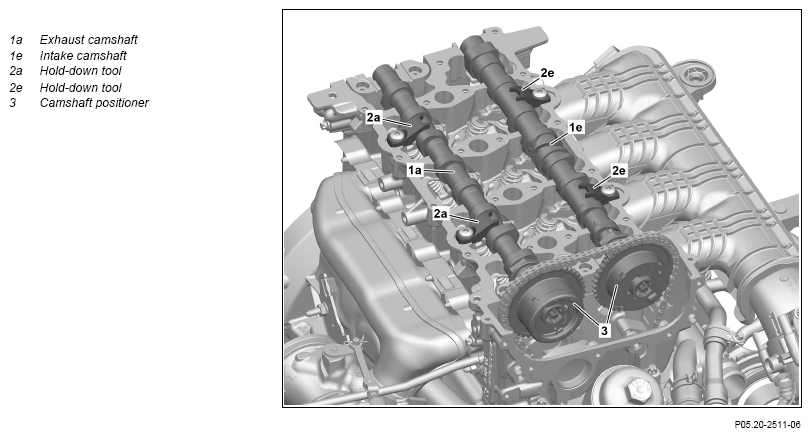

| 1 | Remove camshaft positioners (3). | AR05.20-P-7204MRI | |
| Notes on application of flange sealants to seal major assemblies | AH00.00-P-0500-01MNE | ||
| 2 | Remove holding device. | Fig 2 | |
| 3 | Remove hold-down tools (2a). | *BA05.20-P-1001-05A | |
| 4 | Remove exhaust camshaft (1a). | ||
| General information on checking camshafts and bearing points of camshafts | AH05.20-P-1000-09SZ | ||
| Specified engine oils (service) - Overview | Wet compensating elements, vacuum pump drive and camshaft bearing points with engine oil. Otherwise, damage to the exhaust camshaft (1a) will occur. Cams of exhaust camshaft (1a) must point upwards at an angle after insertion of exhaust camshaft (1a) at cylinder 1. The cams of the intake camshaft (1e) and exhaust camshaft (1a) must point to each other. Otherwise, damage to the exhaust camshaft (1a) and intake camshaft (1e) will occur. |
BB00.40-P-0223-02A | |
| 5 | Remove hold-down tools (2e). | *BA05.20-P-1001-05A | |
| 6 | Remove intake camshaft (1e). | ||
| General information on checking camshafts and bearing points of camshafts | AH05.20-P-1000-09SZ | ||

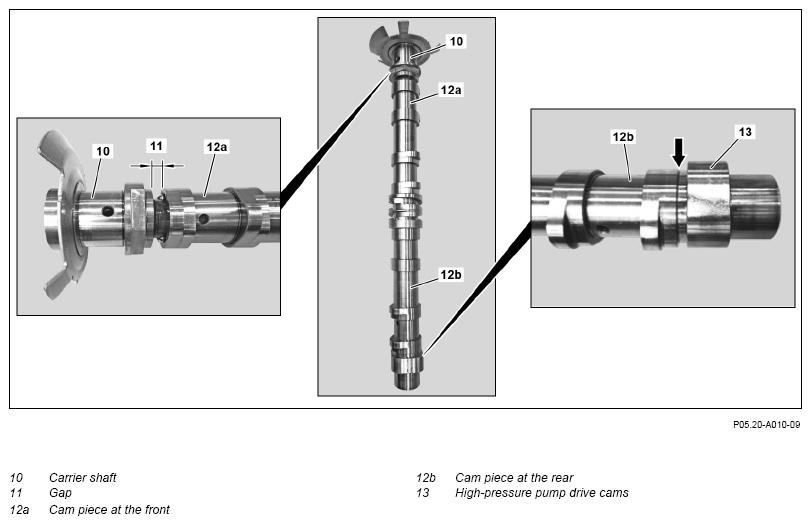

| Specified engine oils (service) - Overview | Wet compensating elements and camshaft bearing points with engine oil. Otherwise, damage to the intake camshaft (1e) will occur. Cams of intake camshaft (1e) must point upwards at an angle after insertion of intake camshaft (1e) at cylinder 1. The cams of the intake camshaft (1e) and exhaust camshaft (1a) must point to each other. Otherwise, damage to the exhaust camshaft (1a) and intake camshaft (1e) will occur. Full stroke position can be recognized by the wide gap (11) between carrier shaft (10) and front cam piece (12a). There should be no gap (arrow) between the camshaft piece at the rear (12b) and the high-pressure pump drive cams (13). Manually adjust front cam piece (12a) and cam piece (12b) if necessary. |
BB00.40-P-0223-02A | |
| 7 | Check camshaft bearing pins for wear. | Outside micrometer Diameter of camshaft fitted bearing journal |
*BE05.20-P-1002-03E |
| Diameter of camshaft bearing journal If the wear limits exceed the permissible tolerance, ↓ Install new exhaust camshaft (1a) and intake camshaft (1e). |
*BE05.20-P-1001-03E | ||
| 8 | Install in the reverse order. |
CHECK VALUES FOR CAMSHAFT BEARING
| Number | Designation | Engine 264 | |||
|---|---|---|---|---|---|
| BE05.20-P-1001-03E | Diameter of camshaft bearing journal | Standard size | Inlet | mm | 28, 947...28, 963 |
| Outlet | mm | 25, 947...25, 963 | |||
CHECK VALUES FOR CAMSHAFT BEARING
| Number | Designation | Engine 264 | ||
|---|---|---|---|---|
| BE05.20-P-1002-03E | Diameter of camshaft fitted bearing journal | Standard size | mm | 31, 947...31, 963 |
CAMSHAFT, CAMSHAFT ADJUSTMENT
| Number | Designation | Engine 264 | |
|---|---|---|---|
| BA05.20-P-1001-05A | Bolt for camshaft hold-down tool | Nm | 28 |
