Retrofit Visual Underride Guard - AZ88.30-P-0009LWG

WARNING: This page is about a different car, the 2023 Mercedes-Benz GLC300, 2022 Mercedes-Benz GLC300, 2021 Mercedes-Benz GLC300, 2020 Mercedes-Benz GLC350e, and 2020 Mercedes-Benz GLC300. However, it is still accessible from the selected car via links, so may be relevant.

Model 253 (except 253.364/964) except code 772 (AMG styling - Front spoiler, side skirts)

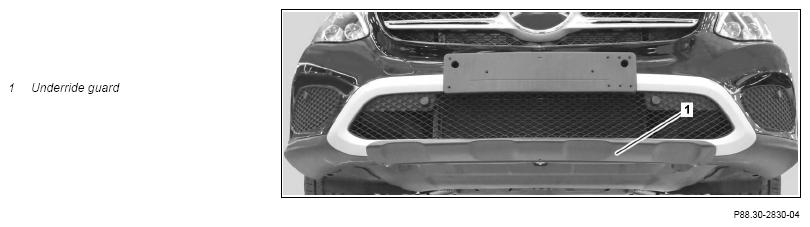

Model 253 except code U89 (OFF-ROAD exterior)

Courtesy of MERCEDES-BENZ USA

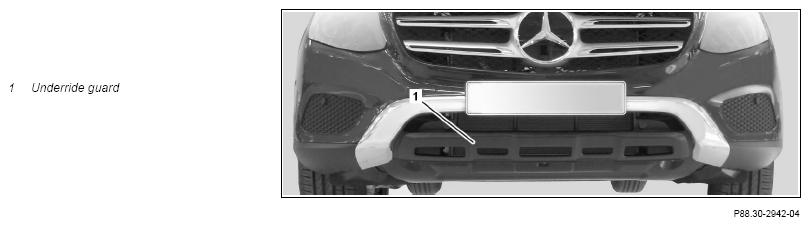

Model 253 with code U89 (OFF-ROAD exterior)

Courtesy of MERCEDES-BENZ USA

	Install
1	Raise vehicle
			AR00.60-P-1002LWG
2.1	Install underride guard (1)	Model 253 (except 253.364/964) except code U89 (OFF-ROAD exterior)
			AZ88.30-P-0009-01LWG
		When pressing on, press directly on adhesive strips on underride guard (1). Otherwise there may be adhesion problems. The maximum adhesive strength is only reached after approx. 72 h at 20°C. Prevent any mechanical stress. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 h.
		4298 UV primer	*BR00.45-Z-1125-02A
		Cleaner	*BR00.45-Z-1025-04A
2.2	Install underride guard (1)	Model 253 (except 253.364/964) with code U89 (OFF-ROAD exterior)
			AZ88.30-P-0009-01LWX
		When pressing on, press directly on adhesive strips on underride guard (1). Otherwise there may be adhesion problems. The maximum adhesive strength is only reached after approx. 72 h at 20°C. Prevent any mechanical stress. Avoid any contact with moisture (e.g. rain, fog, carwash) within the first 24 h.
		Cleaner	*BR00.45-Z-1025-04A
3	Lower vehicle
			AR00.60-P-1002LWG
	Update Vehicle Documentation (VeDoc)
4	Attach note "Simulated underride guard retroffited according to AZ88.30-P-0009LWG" in field organization texts for design group (KG) 88

REPAIR MATERIALS

Number	Designation	Order number
BR00.45-Z-1025-04A	Cleaner	A 005 989 19 71
BR00.45-Z-1125-02A	4298 UV primer	A 007 989 96 71 10

PARTS ORDERING NOTE

Part no.	Designation	Quantity
KG 98 (see EPC)	Underride guard parts kit	1
